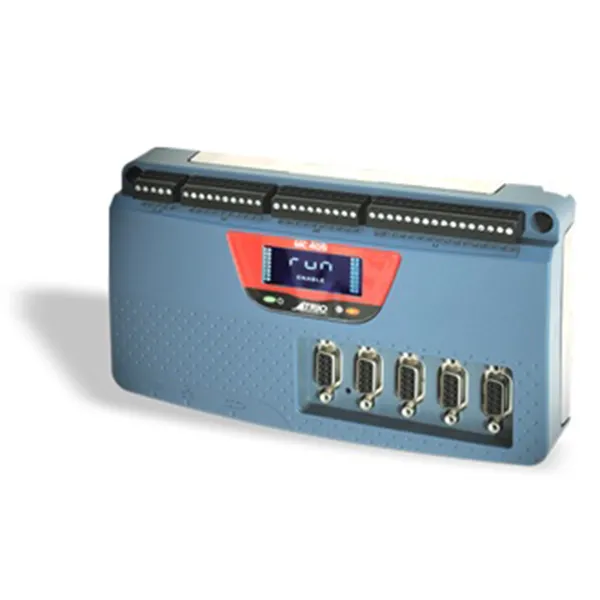

Motion Controller MC405
The MC405 uses a high performance ARM11 532 Mhz Processor and offers four voltage outputs and five flexible axis ports, that can be configured for up to five pulse and direction output axes or four closed loop servo axes. User programs can be written in Trio's multi-tasking TrioBASIC language using the powerful MotionPerfect development suite.
Technical
Supply Voltage
24VDC
Maximum Axes
5 Open Loop (P826)
4 Closed Loop (P827)
Maximum Virtual Axes
16
Processor
ARM 11
Clock Frequency
532 MHz
Position Register Accuracy
64 Bit
Real Time Clock
Yes
Flash Memory
32 x 16000 Values
User Memory
8 MB
Table Memory
512,000 Values
+/- 10V Analogue Outputs
4
0 - 10V Analogue Inputs
2
Digital Bi-Directional Inputs/Outputs
8
Digital Inputs
Registration Inputs
Communications
CANopen
DeviceNet
Ethernet
Ethernet/IP
MODBUS-RTU
MODBUS-TCP/IP
RS232
RS485
