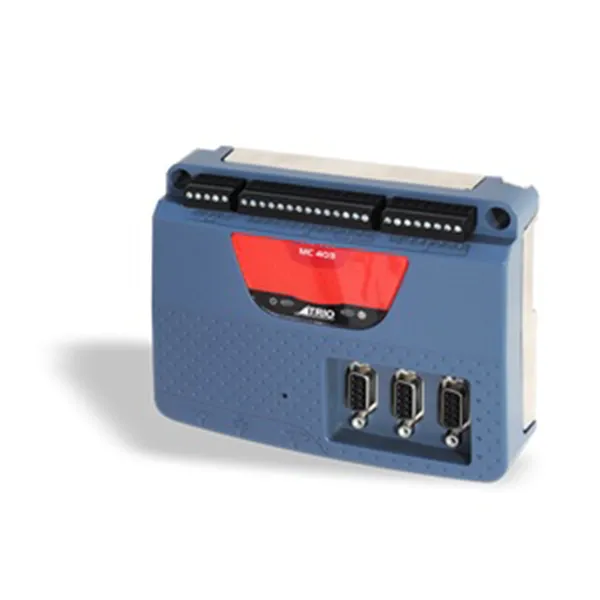

Motion Controller MC403
The MC403 uses a high performance ARM11 532 Mhz Processor and offers two voltage outputs and three flexible axis ports, that can be configured for up to two closed loop servo axes or three step/direction outputs. User programs can be written in Trio's multi-tasking TrioBASIC language using the powerful MotionPerfect development suite.
Technical
Supply Voltage
24VDC
Maximum Axes
3x Open Loop
2x Closed Loop
Maximum Virtual Axes
16
Processor
ARM 11
Clock Frequency
532 MHz
Position Register Accuracy
64 Bit
Real Time Clock
No
Flash Memory
32 x 16000 Values
User Memory
8 MB
Table Memory
512,000 Values
+/- 10V Analogue Outputs
2
0 - 10V Analogue Inputs
Digital Bi-Directional Inputs/Outputs
4
Digital Inputs
8
Registration Inputs
6
Communications
CANopen
DeviceNet
Ethernet
Ethernet/IP
MODBUS-RTU
MODBUS-TCP/IP
RS232
RS485
