Rotary Hearth Furnaces

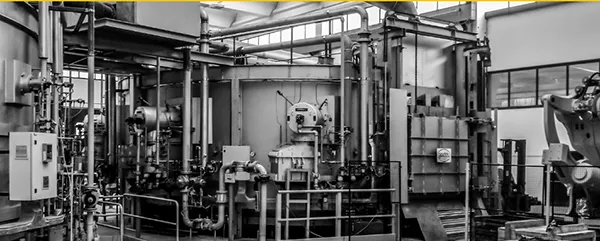

The Gadda group produces high quality rotary hearth furnaces, which can be integrated in a complete line and automatically fed by robot arms allowing parts tracking. Rotary hearth furnaces are extremely versatile and their high throughput and repeatability of results make them particularly suitable to treat large quantities of similar or identical parts.
Optimal sealing of the rotary chamber is obtained with a liquid channel sealing system. A rotary furnace can be designed to lay directly on the floor without the need of a foundation.
Furnace loading can be programmed on multiple circular layers in order to fill the chamber with small parts. In rotary furnaces with double doors, a vertical wall in between the two doors reduces thermal losses during loading/unloading operations.
Technical specifications
Dimension
– Size and productivity tailored to customer needs– Diameter from 4 to 20 m– Single or multiple door design
Heating types
– Direct flame gas burners– Radiant tubes (inert atmosphere)– Electric heating elements
Energy saving
– Centralized heat recovery system– Self-recuperative burners– Regenerative burners– High quality refractory materials– Continuous monitoring through supervision system
Temperature uniformity standard
– API 6A– AMS2750E (Aerospace)– NORSOK (Oil and gas)– CQI-9 (Automotive)
Supervision system
– Custom made supervision system ready for full integration on customer management system
