Safety light curtain- Type 2 & Type 4
Safety light curtain- Type 2 & Type 4

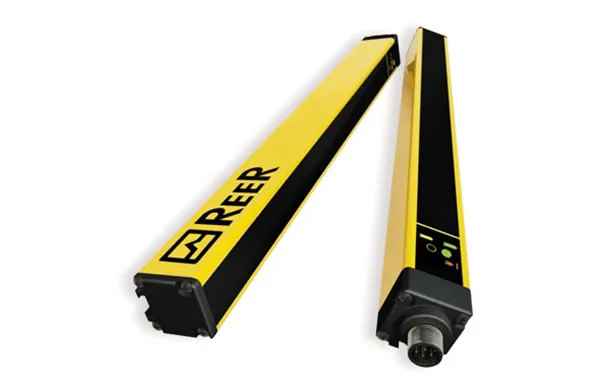

ReeR EOS4 safety light curtain
Safety light curtain ReeR EOS4 is a compact light curtain with safety level SIL3, SILCL3, PL e and Cat. 4. The ReeR EOS4 series consists models with integrated safety functions, including control of outputs, and control of external switching contacts (EDM) and automatic manual restart. By using a master/salve setup, more than two light curtains can be connected to each other.
- Type 4 according to EN 61496-1; IEC 61496-2
- SIL 3 according to IEC 61508
- SILCL according to IEC 62061
- PL e - Cat. 4 according to EN ISO 13849-1
The light curtain is provided with an LED indication with which the status is indicated. On receivers with 14mm beam distance and H-models, a blue LED indicates when the signal is too weak. View ReeR EOS4 safety light curtain.
The Mosaic safety PLC from ReeR Safety is ideally suited for use as EDM (External Device Monitoring).
ReeR EOS2 safety light curtain
Safety light curtain ReeR EOS2 includes models with integrated safety functions, including control of outputs, external switching contacts (EDM) and automatic/manual selectable restart and complies with safety levels:
- Type 2 according to EN 61496-1; IEC 61496-2
- SIL 1 according to IEC 61508
- SILCL 1 in accordance with IEC 62061
- PL c - Cat. 2 according to EN ISO 13849-1
