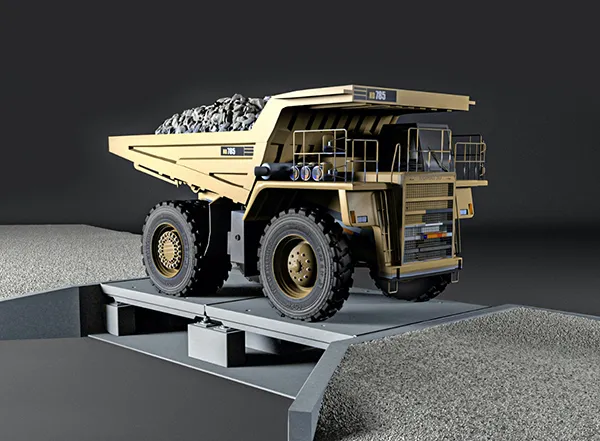

Vehicle scale 14-15 Heavy Duty (HD)
Vehicle scale 14-15 Heavy Duty (HD)
To meet the need for heavier weighing and special vehicles, we have developed a Heavy Duty (HD) version based on our successful vehicle scale 14-15.
The scale is designed to handle single axle pressure of 32 tonnes, bogie pressure of 50 tonnes and triple bogie pressure of 60 tonnes. To cope with increased shoulder pressure, the wave is carried out in sections of 6 meters.
The scale is normally offered with a width of up to 4 meters, and with lengths of 12 meters and 24 meters. Other dimensions can be given after discussion with Flintab. If there are additional requirements for axle pressure or width, two bridges can be placed in parallel. This gives a scale that can withstand an axle pressure of 75 tonnes.
Construction
Vehicle scale 14-15 HD is designed and manufactured using a method where the reinforcement is tensioned for casting. This manufacturing method provides superior durability and the scale retains its original shape for accurate weighing results year after year.
The service hatches are located in the middle of the wave bridges in sunken and all-terrain designs. This is to reduce problems that otherwise arise if they are placed in the wheel tracks. The vehicle scale can be equipped with run-off protection for better safety and working environment.
Split weighing
In the standard version, Flintab's vehicle scale HD consists of 6 meter independent bridges, this gives the possibility of shared weighing.
Split weighing gives a more accurate scale. It provides a faster weighing procedure, allows different materials on car and trailer. Another advantage of two piers is that it provides increased operational reliability, as one of the piers can always be kept in use for service and maintenance. To name just a few benefits.
Heat in the wave for increased operational reliability
To avoid icy docks, downtime and incorrect weighing in winter, we recommend choosing to heat the scale. This increases the operational reliability of the scale in winter and that no "washboards" are formed by the cars when starting and stopping on the scale. Ice formation can significantly affect the weighing result and cause downtime. Therefore, we can offer to install heating in both the wave bridge and foundation to prevent ice formation from below.
Temperature and humidity sensors minimize energy costs and climate impact
As an option, you can choose our temperature and humidity sensor, which is molded into the scale. It significantly lowers energy consumption and minimizes climate impact. The sensor detects whether the wave is dry (melted) despite freezing temperatures and then lowers the heat. For companies that are certified according to ISO 14001, our temperature and humidity sensor is an obvious choice.
