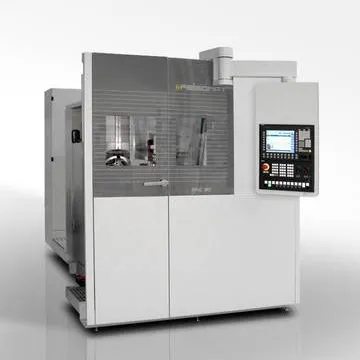

Hobbing Machine FHC 80

Hobbing Machine FHC 80

High speed in gear technology

The Felsomat Flexible Hobbing Center 80 is providing the competitive edge in manufacturing with a perfect mechanical engineering. Especially developed for high speed cutting (HSC process) for transmission manufacturing, the FHC 80 is reducing the machining time to a level deemed unreachable so far. In combination with an ultra rapid integrated loading system it is possible to achieve machining times less than 8 seconds per work piece – and all this with a minimum of floor space and a maximum of work area.

High Performance Facts:

• Chip-to-chip time < 1 second due to
• Loading/unloading parallel to the hobbing process
• Pendular machining with 2 spindles
• Lowest cost per piece and longer tool life
• Ideal for dry machining
• Rigid and sturdy work piece –and tooling spindle increased cutting parameters and tool life.
• Shorter cutting times due to higher material removal rate
• a higher material removal rate
• Finish machinig in final quality IT4 to IT5 with the single cut or a dressing cut process
• More than doubled life cycle time with two spindles with lower acceleration and deceleration
• The high productive 2- spindle hobbing center is equipped with a tailstock and a tension rod with a closed force loop
• Easy change over through excellent access and an ergonomical work holding and hob tool change < 10 min.
• Easy operator interface with intelligent technology software package
• Singular construction design with lift hooks for easy redeployment

For a multitude of manufacturing possibilities:

• Parallel to main processing time push-roll-deburring with fettling wheel and elimination oft he resulting secondary burr at the flank with the dressing cut
• Finish machinig in final quality IT4 to IT5 with the single cut or a dressing cut process

Convenient tool change:

To change the hob cutter, the hob head is swivelled into a vertical position prior to the operator accessing the work area. Based on the excellent access and the use of both hands a hob cutter change is possible in only 30 seconds.

Precision to the µm, day after day, year after year

All hobbing machines of the FHC platform have a mono-block machine base made from mineral base concrete for maximum rigidity with optimum damping characteristics and high dynamic axis servo drives. Direct driven synchron motors for the work piece spindle and the tool spindle with high resolution encoders, guarantee a high dynamic feedback control system, highest quality and a long life of the production machine.
