Direct Rotary Drum Dryers

DIRECT ROTARY DRUM DRYERS

We’ve built a reputation on building the best rotary dryers in the industry. All of our dryers are custom designed to suit the unique processing needs of your material. Whether you require low or high inlet temperatures, short or long residence times, counter current or co-current flow, FEECO’s design team can design a rotary drum dryer for your application.

Rotary dryers are a highly efficient industrial drying option for bulk solids. They are often chosen for their robust processing capabilities and their ability to produce uniform results despite variance in feedstock.

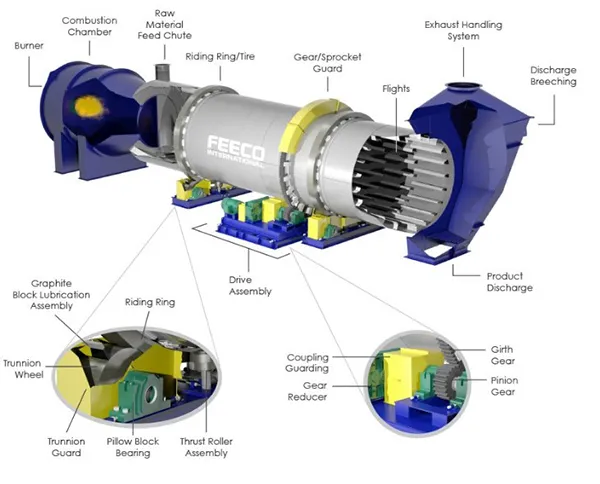

Rotary dryers work by tumbling material in a rotating drum in the presence of a drying air. They can also be indirectly heated to avoid direct contact between the material and processing medium.

The drum is positioned at a slight horizontal slope to allow gravity to assist in moving material through the drum. As the drum rotates, lifting flights pick up the material and drop it through the air stream in order to maximize heat transfer efficiency. When working with agglomerates, the tumbling action imparted by the dryer offers the added benefit of further rounding and polishing the granules.

FEATURES

• Diameter: 3′ – 15′ (1 – 4.6m)
• Capacity: 1 TPH – 200 TPH (1 MTPH – 181 MTPH+)
• Specially designed lifting flights to maximize heat transfer between the material and hot gas stream
• Heavy duty design and construction for many years of service
• Co-current (parallel flow) or counter-current configuration
• Process and Mechanical Warranties
