Exeltech Inc

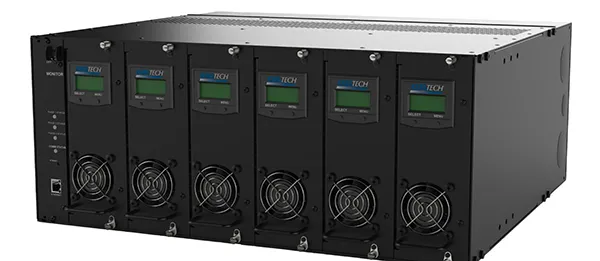

NC Series Inverters

Exeltech’s NC Series Telecommunication Inverter Systems are engineered to address the high reliability and safety demands of the telecommunication industry.

NC series inverter systems are equipped with 2KW power modules. Modules are “hot” insertable, power levels are expandable, and modules can be added or replaced without interruption in power to your critical loads.

The NC system can be configured for power levels from 2 to 36KW single phase with 120Vac output. Up to 18KW per phase at 240Vac bi-phase or 12KW per phase at 208Vac three-phase with 48v inputs available.

A monitoring module plus any number of additional 2KW power modules combine to make a standard NC inverter. This type of system can be expanded as power requirements increase, and upgraded to be N+1 redundant as desired.

The NC system is extremely compact and lightweight. Power modules weigh only 9 lbs each and are equipped with LCD screens for quick access of system data.

Output voltage is precisely regulated, so that no measurable voltage change occurs on the output as input voltage fluctuates. Similarly, less than 0.5 volt change in output voltage will occur when the output load varies from 0 to 100% of rated power. With distortion of 2% maximum, this inverter offers the cleanest sine wave power available.
