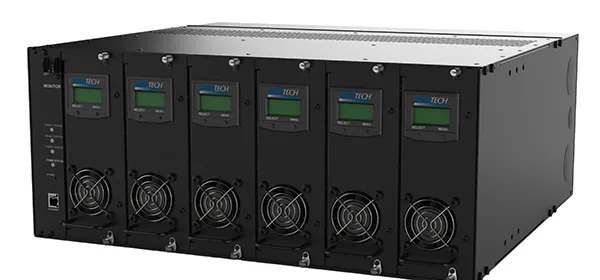

LC Series Inverters

Exeltech’s LC series inverter systems are equipped with 2KW power modules, this now provides double the output power within similar space requirements as are top selling MX series inverters. Modules are “hot” insertable, power levels are expandable, and modules can be added or replaced without interruption in power to your critical loads.

The LC system can be configured for power levels from 2 to 60KW single phase with 120Vac or 277Vac outputs. Up to 120KW at 240Vac bi-phase or 180KW at 208Vac or 480Vac three-phase with many input and output voltages also available.

A monitoring module plus any number of additional 2KW power modules combine to make a standard LC inverter. This type of system can be expanded as power requirements increase, and upgraded to beN+1 redundant as desired. The LC system can be configured with Exeltech’s static transfer switch and maintenance bypass switch up to 20KW per phase. Also an optional customer interface cage with up to 5 DC breakers is available.

The LC system is extremely compact and lightweight. Power modules weigh only 9 lbs each and are equipped with LCD screens for quick access of system data.

Output voltage is precisely regulated, so that no measurable voltage change occurs on the output as input voltage fluctuates. Similarly, less than 0.5 volt change in output voltage will occur when the output load varies from 0 to 100% of rated power. With distortion of 2% maximum, this inverter offers the cleanest sine wave power available.N + 1 REDUNDANT
