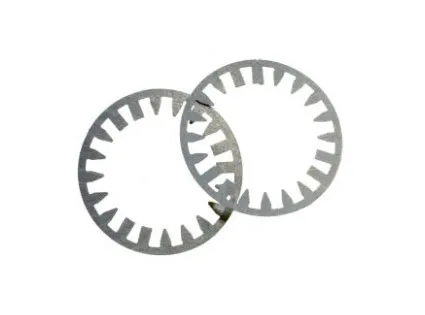

Super Air Amplifier Shim Set

Super Air Amplifier Shim Set

Super Air Amplifiers™ under 8" (203mm) are supplied with a .003"(0.08mm) slotted air gap which is ideal for most applications. The Model 120028 8" (203mm) Super Air Amplifier is supplied with a .009" (0.23mm) air gap. Flow and force can be increased by replacing the shim with a thicker .006" (0.15mm) or .009" (0.23mm) shim. Super Air Amplifier Shim Sets include (1) .006" (0.15mm) and (1) .009" (0.23mm) stainless steel shim (except Model 120028, which also includes (1) .015"(0.39mm) stainless steel shim).
