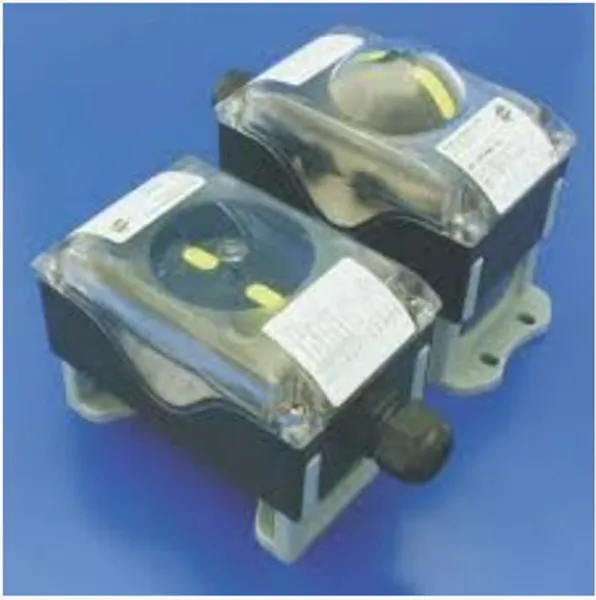

Safe zone polyamide box
Limit switch box with polyamide case and polycarbonate cover with polyamide bracket adjustable in height 20-30-40 mm and 2D or 3D visual indicator, complete with 1x M20 x 1.5mm cable gland - available with 2x cable glands and also with pre-assembled cable 500mm long - NPT 1/2 and M12 connections are also available on request
Degree of protection: IP66-1P67
- Version with bracket in Aisi 304 -> code EPE2M01-3D
- Version with aluminum case and AISI 304 bracket -> code EAE2M01-3D
The standard terminal board has 6 poles + optional 6 others for solenoid valve connection
It is proposed with SPDT mechanical limit switches, inductive 2 or 3 wire Pepper & Fuchs / IFM sensors and magnetic sensors
The standard version is SIL 1-3 certified
EAC and UL certifications are available to request
The standard color is black but customizations with other colors are possible: red, royal blue and white
In the ATEX -II 2GD version this box is available for zones 1-21 / 2-22 Ex ia, Ex de, t
