ENGICAM s.r.l

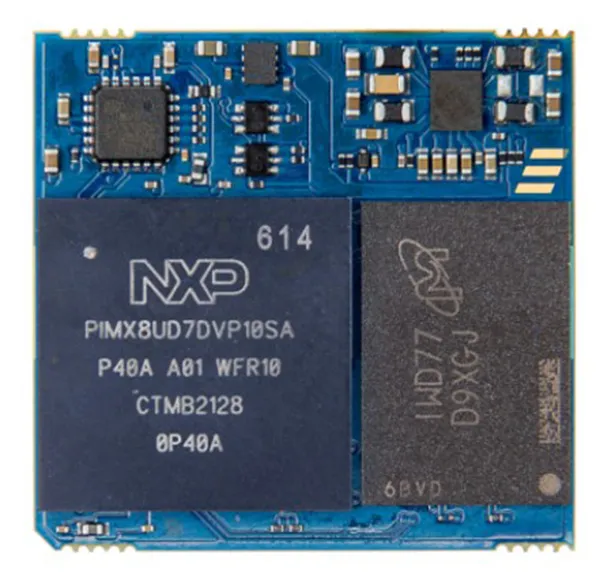

MicroGEA MX8ULP

MicroGEA MX8ULP based on new NXP® i.MX 8ULP processor

Engicam presents MicroGEA MX8ULP based on new NXP® i.MX 8ULP processor that features up to two Arm® Cortex®-A35 running at 1 GHz, an Arm Cortex-M33 core. This module brings ultra-low power processing advanced integrated security and a graphical engine.

Specification

CPU

Manufacturer : NXP

GPU

Cores

ARMUp to two Arm® Cortex®-A35 @ 1.0 GHz Arm Cortex-M33 @ 216 MHz2 cores

Memory

LPDDR4X 1066

1GB up to 2GB

Graphics

3D GPU includes OpenGL® ES 3.1, Vulkan®, OpenVG™ 1.1, OpenCL™ 2.x and OpenVG™ 1.1 3D graphics accelerator, and 2D graphics accelerator

Video Interfaces

DSI, Parallel RGB

Mass Storage

4GB eMMC drive soldered on-boardEMMC

Networking

1x LAN 100

USB

2x USB2

Audio

I2S interface

Peripheral Interfaces

UART, SM Bus, I2C, LPC/eSPI, SPI, GPIOs

Power Supply

single 3.3V
