ENGICAM s.r.l

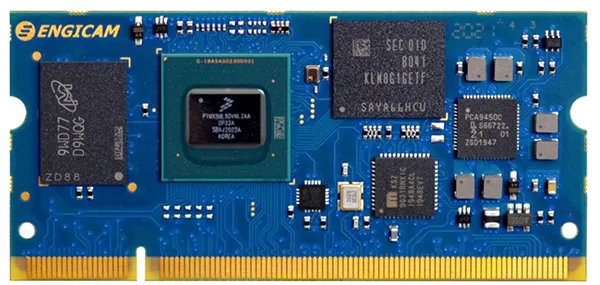

i_Core MX8M Plus

EDIMM SOM based on NXP® i.MX 8M Plus

The new i.Core MX8M Plus is based on i.MX 8M Plus processor equipped with the quad-core Arm® Cortex®-A53 plus Cortex-M7.

The i.MX 8MP series features offer powerful video processing with an H.265 video encoder for highly efficient compression in live video streaming applications. It runs at up to 1.8 GHz with an integrated neural processing unit (NPU) that delivers up to 2.3 TOPS.

As the first i.MX processor with a machine learning accelerator, the i.MX 8M Plus processor provides substantially high performance for ML inference at the edge.

CPU

• NXP® i.MX 8M Plus
• Manifacturer: NXP
•  NPU
•  VPU
•  GPU

 Cores

• ARM
• Quad Arm® Cortex®-A53 @ up to 1.8GHz processor with a (NPU) up to 2.3 TOPS and Cortex®-M7 CPU @ 800 MHz.
• 4 cores

 Memory

• LPDDR4 4000
• 1GB up to 4GB

 Graphics

• GC7000UL (2 shaders), OpenGL ES 2.0/3.0/3.1, Vulkan, OpenCL 1.2; GC520 (2D)

 Video Interfaces

• DSI, HDMI, LVDS

 Video Processing Unit Capabilities

• 1080p60 HEVC (h.265, VP9, VP8) dec; 1080p60 HEVC (h.265) enc

 Mass Storage

• Starting from 8GB eMMC drive soldered on-board
• EMMC

 Networking

• 1x LAN 1000

 USB

• 2x OTG
• 2x USB3

 PCIe

• PCIe 3.0
• 1 lanes

 Audio

• I2S Interface

 Peripheral Interfaces

• UART, I2C, SPI, JTAG, CAN, SDIO, GPIOs, MIPI-CSI – 4 lanes
• single 5V

 Operating Temperature

• -40° up to 85°
