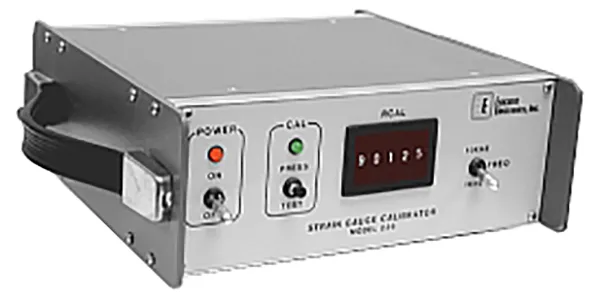

Model 226 AC Strain Gage Calibrator
The Model 226-002 provides a calibrated sinusoidal signal to your strain gage measurement system. The precision calibration resistor in series with a modulation signal is connected across the strain gage. The peak-to-peak value of modulation signal is automatically set to equal the bridge excitation mode.
Specifications
Bridge:
80 ohms to 1K ohm
Bridge excitation:
Accepts 0.25V to 15V excitation, for 0.12V to 7.5V gage voltage
Controls:
Five-digit cal-resistor thumb-wheel, 10 ohms to 1M ohm. Push-to-test button connects internal circuits for self-testing purposes; +Vgage or -Vgage, switch selectable
Frequency:
Switch selectable 1kHz or 10kHz
Connectors:
Strain gage BNC, Rcal monitor BNC, battery monitor BNC, modulation signal monitor BNC
Indicators:
Bi-color LED’s monitor battery and self-test results
Power:
Removable 7.2V nicad battery (with 120VAC charger)
Mechancial:
3.5″H x 8.5″W x 8.5″D
