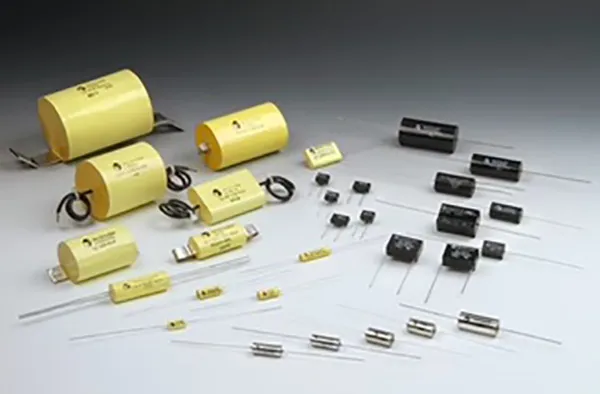

Standard Film Capacitors
Standard Film Capacitors
Precision electrical energy storage, varying RMS current
What types of standard precision capacitors do Electrocube manufacture and distribute?
Electrocube maintains an extensive line of standard film capacitor designs, proven consistently reliable for more than five decades.
Made from a variety of materials, including metallized polyester, metallized polypropylene, metallized polycarbonate, metallized polyphenylene, hermetically-sealed mylar, kraft and film foil, standard Electrocube precision capacitors satisfy a wide range of temperatures, capacitor insulation resistance and other configuration requirements.
How does Electrocube standard film capacitors work?
Precision-wrap and fill capacitors, oval/round/flat capacitors and epoxy case/hermetically-sealed capacitors store energy for a number of applications such as AC and pulsing, low-loss/high frequency, high frequency/high current/low ESL/ESR and high voltage. Thousands of standard Electrocube capacitors are in stock to meet each client’s needs promptly and efficiently.
What are some features of Electrocube standard film capacitors?
- Various capacitance dimensions and capacitor insulation resistances
- Capacitance range from .0001 µf to 150 µf
- Temperature ranges from -55 °C to +150 °C
- Voltages from 35 VDC to 30 KVDC
What modifications are available for Electrocube capacitors in its standard line?
Clients that manufacture commercial jetliners, military aircraft or defense avionics benefit from Electrocube’s experience in application engineering. Standard modifications include:
- Moisture-resistant requirement
- 100% I.R. required
- Special D.F. requirement
- Tape and reel required
- Wrap and fill radial leads design
- Premium stamp – two-part epoxy ink
- Customer part number required on part
- Special I.R. requirement
- Glass tape, flame tape, flame end-fill (flame retardant)
- Flame tape, flame end-fill (flame retardant)
- 100% burn-in and I.R. required
- Temperature cycle required
- Flame end-fill only
- 100K Hz ESR test
- Clear wrap
- RoHS, non-compliant, contains lead
- 10K Hz screen test
