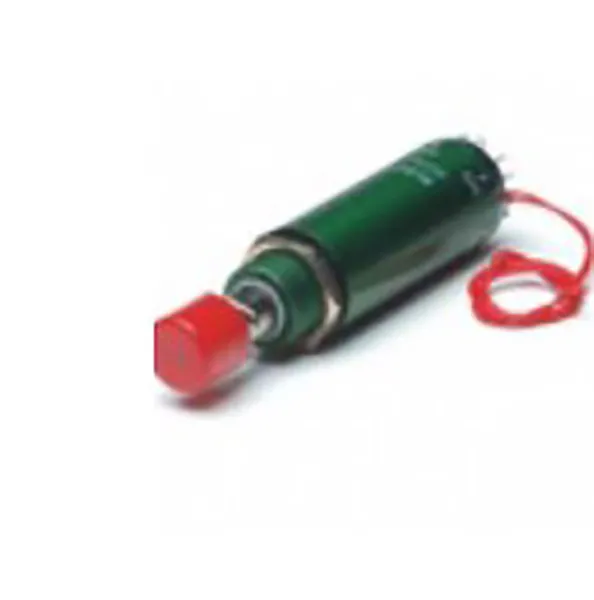

Series 3600-3900 Illuminated Solenoid Release Switch

This Electro-Mech Series of solenoid release switches provides an excellent choice of conventional alternate action or increasingly popular fail-safe alternate action switching in a variety of styles.

Proven in critical applications such as military and avionics installations, the fail-safe reliability of the Series 3800/3900 offers an ideal switch consideration for emerging industrial controls, process and instrumentation uses in commercial, yet vital areas of dependable solenoid-style switching functions.

Ratings: 30 volts DC or 125 volts AC; 2.0A resistive, 0.5A inductiveWeight: 0.8 oz. (22g) (approx.)Operating Pressure: 2 lbs.+ 1 lb. (454g + 227g)Plunger Travel: 0.187 approx. (25.4mm)Actuations: 100,000 minimumContacts: Silver plated (gold plating optional)Terminals: Standard EMC solder lug. Accepts two 20 AWG wires.Lens: Accommodates all standard EMC lenses with PD modified plunger (L7xxx).Lamp or LED: Accommodates one T 1-3/4 (5mm) midget flange base lamp or LED. Lamp circuit is independent.Coil Rating:—3600/3700—> *28VDC, 25ohms (will release @ 15vdc)—3800/3900—> 28VDC, 480ohms (will operate @ 15vdc)AG Modification:—3600/3700—> *14VDC,8.5ohms (will release @ 10vdc)—3800/3900—> 14VDC,125ohms (will operate @ 10vdc)
