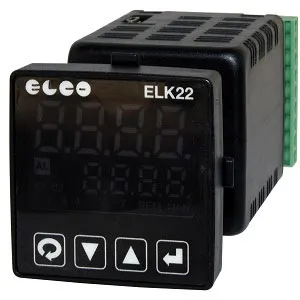

Digital temperature controllers-ELK 22 S SERIES

Technical Data

• Power supply: 24 VAC/VDC, 100...240 VAC +/-10%

• Power consumption: 8 VA approx

• AC Frequency: 50 / 60 Hz

• Universal input: Thermocouples J, K - Thermoresistors Pt100 2/3 wires / Thermoresistors PTC KTY81-121 - NTC 103AT-2

• Relay: Up to 2 outputs: 1 output SPDT and 1 output SPST-NO (6A AC1 / 250 VAC)

• Relay electric life: 100000 operations

• Control voltage for SSR: Up to 2 outputs, 20 mA / 10 VDC with short circuit protection

• Control: ON/OFF, Neutral Zone, PID single action

• Overall accuracy: According to the used probe 1/0.1/

• Measurement range: According to the used probe and to the measurement unit

• Other tecnical features: see document attached
