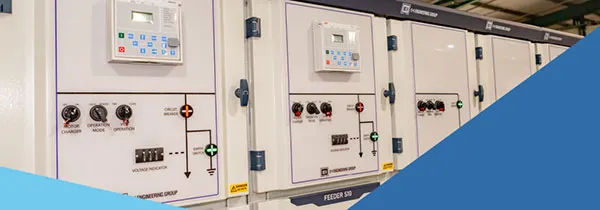

Medium Voltage Switchgear IEC

Medium Voltage Switchgear IEC

Indoor Air Insulated Switchgear for Medium Voltage Power Distribution

E+I Engineering’ unique indoor air insulated withdrawable Medium Voltage switchgear range is available in voltage ratings of 12kV, 17.5kV, 24kV and 40.5kV. This new series of MV switchgear has been born from the concept of having a product of the highest standard with full IEC certification.

The modular construction of the range allows E+I Engineering’s team of expert engineers to customise each medium voltage power solution based on individual project specification.

Features

• Available in 630A – 2500A
• Withdrawable circuit breaker
• Available with ABB VM1 or VD4 or Schneider Easy Pact circuit breaker
• External protection degree of IP4X
• Integration of internal arc prevention technologies
• Vacuum Interrupter Technology for safe, compact and reliable performance

Benefits

• The compact and modular design ensures the systems are fully extendable and customisable for increased project flexibility
• Circuit breaker can be removed for maintenance to prevent an increase of resistance due to loose or faulty circuit breaker connections
• Comprehensive mechanical and electrical interlocks increase safety and prevent maloperation
• Incorporation of protection relays from all major suppliers including Schneider, Fanox, ABB, Siemens and SEL
• All cables and control panels fully accessible for ease of use
