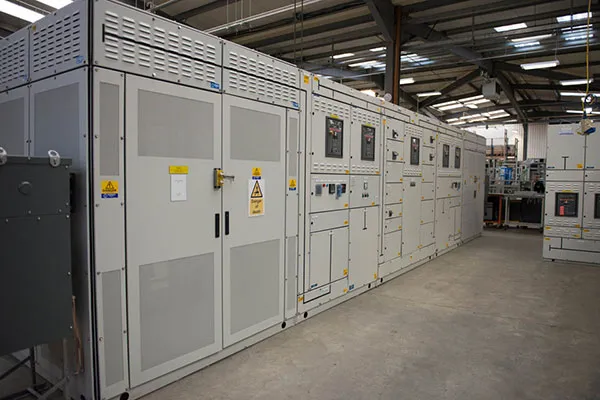

Low Voltage Switchgear

Low Voltage Switchgear

The most compact type-tested switchgear assemblies in Europe

We produce a range of low voltage switchgear type tested to BS EN61439-1. Using a modular system and 3D modelling tools, E+I Engineering’s team of engineers are able to create a specification compliant solution for each individual project.

Specifications

• Fully compliant with BS EN 61439-1
• Available from 800A – 6300A
• ASTA certified heat rise performance and ASTA certified short circuit ratings available up to 100kA/1 sec
• All Forms of Separation available up to Form 4 Type 7
• 100% and 200% neutral busbar options
• Seismically tested and certified
• Components from all leading manufacturers in fixed, withdrawable or plug-in configurations

Features

• Reduced footprint designs including high density device stacking
• Fully extendable for future additions
• Full access to all busbar connections for maintenance and thermal imaging surveys
• Incorporation of life safety protection relays and interlocks
• Incorporation of in-house PLC programming and energy monitoring equipment
• Flexible construction with in-line, back-to-back, U and L shaped configurations
