EA Elektro-Automatik

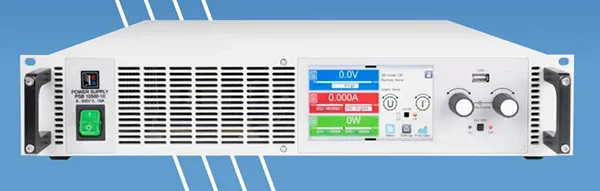

EA-PSB 10000 2U 1.5 KW_3.0 KW Bidirectional DC Power supply

Features

• Wide range input, 110 V - 240 V +10 % 1ph AC
• Active Power-Factor-Correction, typical 0.99
• Bidirectional power supply, 2-quadrants insource and sink
• In load operation, regenerative with energy recoveryinto the grid
• Very high efficiency up to over 95 %
• Voltage from 0 - 10 V up to 0 - 1500 V
• Currents from 0 - 6 A up to 0 - 120 A
• Flexible power regulated DC input/output stages(autoranging)
• Regulation mode CV, CC, CP, CR with fast crossover
• Digital regulation, high resolution with 16bit ADCs andDACs
• Color 5“ TFT display with touch control and intuitiveuser interface
• Galvanically isolated Share-Bus for parallel operationof all power classes in the 10000 series
• Master-Slave bus for parallel operation of up to 64units of all power classes in the 10000 series
• Integrated function generator with predefined curves
• Predefined automotive test procedures for LV123,LV124 and LV148
• Integrated battery test mode, battery and fuel cellsimulation
• Photovoltaics test mode, MPPT, EN 50530
• Command languages and drivers: SCPI and ModBus,LabVIEW, IVI
