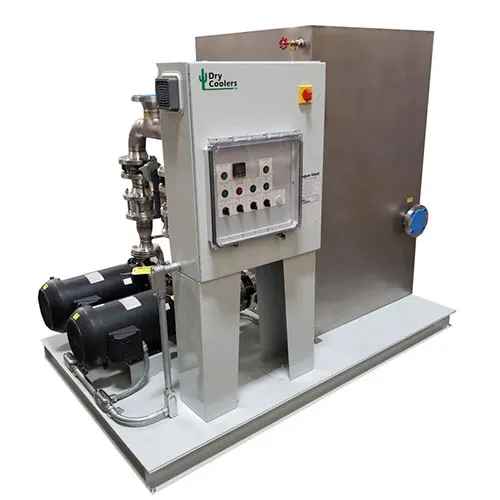

CleanLOOP NF Series Non-Ferrous Pump Station
CleanLOOP NF Series Non-Ferrous Pump Station
Nonferrous, closed-loop pump station for low-conductivity cooling fluids
The CleanLOOP NF Series Non-Ferrous Pump Station is a packaged, closed-loop system for circulating low-conductivity fluid through sensitive equipment. Standard construction uses 304 stainless steel, copper, bronze, and brass for piping, pumps, valves, and instrumentation. A temperature control valve is often provided to prevent condensation.
OPERATION
The NF Series Pump Station runs continuously, circulating low-conductivity fluid through the facility. In Duplex (dual-pump) models, the backup pump will turn on immediately upon loss of pressure from the primary pump.
The NF Pump Station is often used in conjunction with Dry Coolers AquaVent air-cooled heat exchangers, closed-circuit evaporative towers, or mechanical chillers.
MAINTENANCE
Periodic monitoring of water quality may be required to ensure low conductivity. With proper closed-loop water treatment, the system will protect connected equipment from corrosion, scale, and debris, eliminating downtime and efficiency losses due to water quality issues.
STANDARD FEATURES
- Premium efficiency TEFC pumps for optimal performance
- Welded stainless steel or sweat copper pipe construction
- Stainless or poly tank for corrosion resistance
- Isolation valves for safety and maintenance
- Control panel meets UL 508A standards
- Pre-wired, pre-plumbed, and factory-tested for quick and easy installation
OPTIONS & UPGRADES
- Variable-frequency drives
- Pump safety switches
- Insulation for cold or hot applications
- Filtration
- Heater
- ASME certification
- On-site startup
Benefits
- Maintains low-conductivity cooling fluid
- Eliminates corrosion and scaling on equipment
- Easy installation
