Dri-Air Industries, Inc.

Portable Mini Desiccant and Compressed Air Dryers

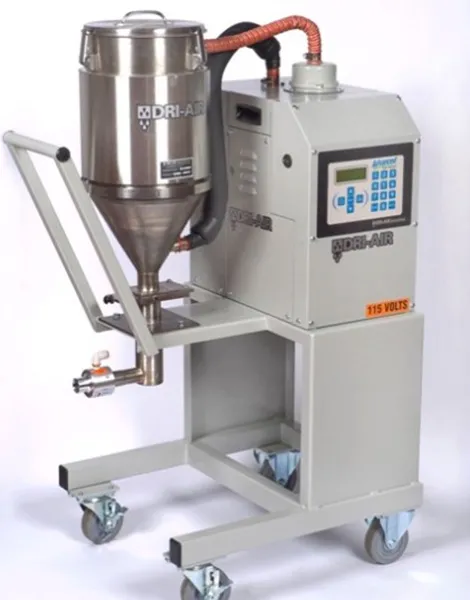

Portable Mini Desiccant Dryer

The Mini PD dryers are ideal for small press /extruders with the dryer and hopper on a compact, castered floor frame. Optional DAC compressed air loaders provide easy, safe changeovers liminating press mounted drying hoppers.

System Features:

• Space saving, compact design, only 21 inches (54 cm) high and weighs only 70 lbs (32kg).
• Fast drying with the industry’s smallest two bed dryer.
• Processing rates up to 10 lbs/hr (5 kg/hr).
• ADC based control with high temperature alarm.
• Dimensions 11 x 18 x 21 inches (28 x 46 x 54 cm).

Compact Size:

The Mini PD portable dryer replaces press mounted drying hoppers so material changes can be made off the press/extruder. Dryers can be staged outside the molding area for preparation for the next material run, eliminating downtime on material changeovers.

Conveyance to the press:

Our DAC compressed air loader provides quiet, reliable transfer of dried materials to the press/extruder.

Arid-X 10 Dryer:

The compact dual desiccant bed Arid-X 10 dryer is ideal for low throughput/small press and extruder applications. An all electric design, no compressed air is required, just plug it in to a single phase 110 or 220 volt outlet.
