Dri-Air Industries, Inc.

Floor Mount Dryers

Floor Mount Dryers

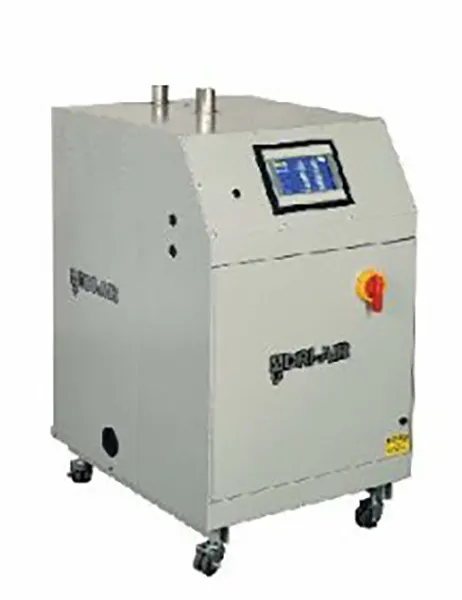

Model 50-100 shown with optional touch screen.

No moving or rotating internal parts

• Space-saving compact design available for process rates up to 750 lbs/hr.
• Models are available in industry-standard 2-bed (ARID-X FM Series) and high-performance 4-bed (HP4-X FM Series)
• Combine with a press/extruder mounted drying hopper for a complete system
• Dryer hoses and casters are included

Energy efficiency:

• Most energy efficient dryer in the market (when compared to compressed air, rotary wheel, vacuum and other dual bed dryers)
• Single blower design for process and regeneration air
• On-demand regeneration; adjusts to ambient conditions, materials and process rates
• Desiccant tower design maximizes heat transfer
• -49ºF to -130ºF dew points; as dry air, not ambient air is used for regeneration or cool down of desiccant towers, slip stream of low dew point air is used

System Features:

Model 150, 200 & 300 shown with ADC control and optional water after-cooler

• Can be used with Hopper Bank Series and multi-hopper systems
• ADC Control is standard and includes:
• -49 F dewpoint monitor
• 7 day timer
• Diagnostic functions
• Dewpoint, heater, and temperature alarm
