Divelbiss Corporation

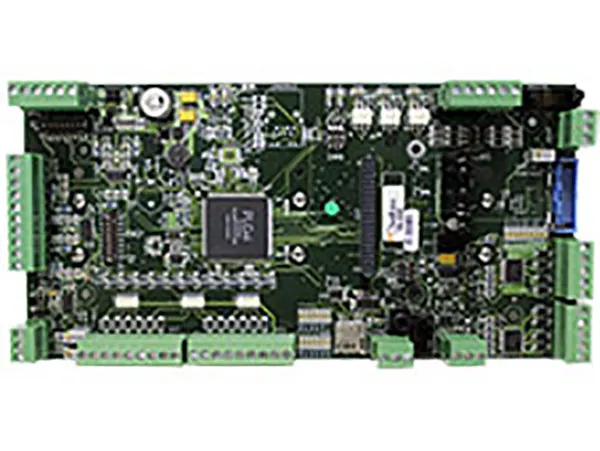

VB-2000 Series Controllers

VB-2000 Series Controllers

Designed for flexibility, the VB-2000 Series Controllers provide powerful on-board features including I/O, high speed counters, analog and communications. The VB-2000 Series controllers offer an operating temperature of -40° to 80°C and can be expanded with plug-in option cards that provide additional I/O and analog options. The VBDSP-XX HMIs plug directly into the VB-2000 Series controller providing a display / keypad option over the extended temperature range.

Series Features:

• 12 Digital Inputs (Sink or Source) / 8 Digital Outputs with PWM Standard
• 7 Field Configurable Analog Channels (0-5V / 0-10V / 0-20mA) Standard
• 1 Analog Field Configurable (DAC) Outputs Standard
• 3 High Speed Counters Standard
• J1939 / NMEA 2000 / Modbus Master-Slave Networking
• CAN, ETHERNET, Wi-Fi and Serial Communications
• Cellular and GPS Positioning via Plug-in Expansion
• Expandable I/O, Analog with Thermocouple and HMI options
• IoT Enabled, Local Webserver
• Ladder Diagram / Structured Text Programming with EZ LADDER Toolkit
• Din Rail Mount
