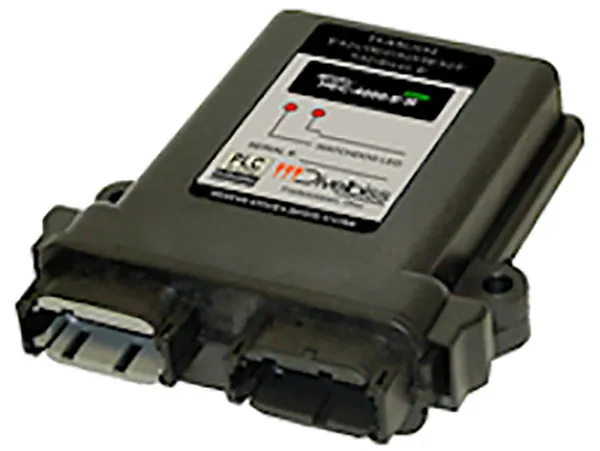

Harsh Environment 1500 Series Controllers

Harsh Environment 1500 Series Controllers

The HEC-1500 Series Controllers are designed with a minimal foot-print and to withstand tough environments and wash-down areas. With a robust, sealed enclosure and an operating temperature of -40° to 80°C in combination with its analog and digital I/O, the HEC-1500 Series controller is a ideal solution for many mobile and electro-hydraulic applications.

Series Features:

• Sealed IP67 Enclosure
• 6 Digital Inputs / 6 Digital Outputs with PWM Standard
• High Speed Counters Standard
• 2 Field Configurable Analog Channels (0-5V / 0-20mA) Standard
• J1939, Modbus Slave Networking
• CAN and Serial Communications
• Ladder Programming with EZ LADDER Toolkit
