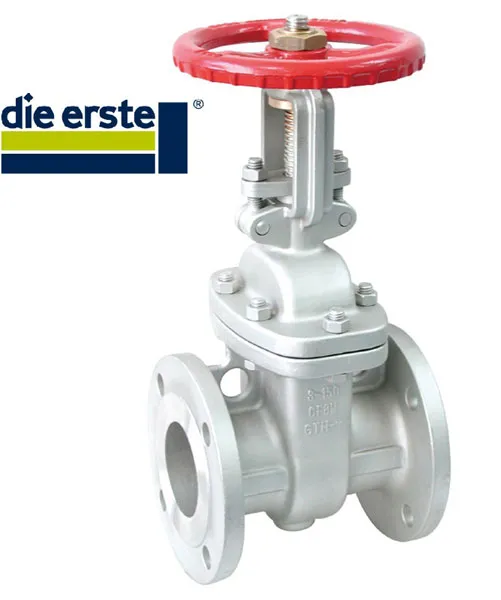

Stainless Steel Flanged Gate Valves

Stainless Steel Flanged Gate Valves

Our company provides the stainless steel flanged gate valves for our customers located across the globe.

Specifications of Stainless Gate Valve include:


  • Size Range : 1/2"-12"
  • Valve Material : Stainless Steel
  • End Connections : Flanged
  • Stem and Disc Material : Stainless Steel
  • Rating: ASME Class 150/300, JIS 10K/20K, DIN PN16


Features:


  • Bolted bonnet, outside screw and yoke
  • Rising stem and hand wheel operated, yoke integral with bonnet
  • Integral Seat Ring
  • Fully traceable materials
  • Service Application: Hydraulic, Chemical, Steam, Oil/Gas, Oxygen, Vacuum
  • Basic design complied with ANSI B16.34/ API 603
  • Flange end complied with ASME/ANSI B16.5
  • Face-to-face dimensions complied with ASME/ANSI B16.10
  • Valve testing & inspection: ANSI B16.34/ API 598
