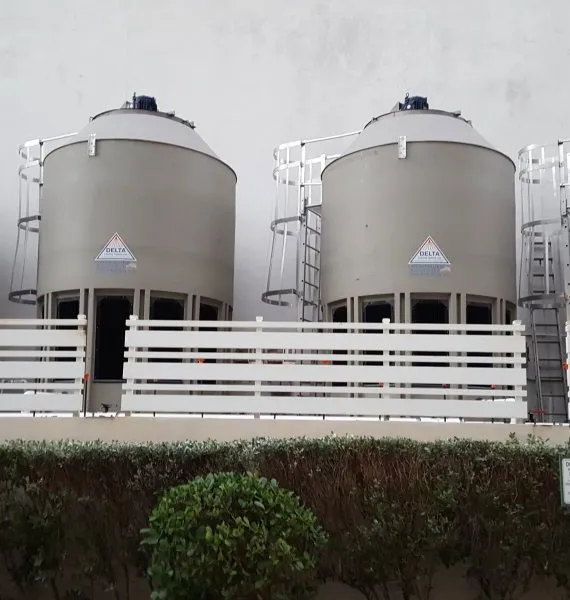

Paragon Induced Draft Towers
Paragon Induced Draft Towers
Standard Features
Experience Brilliance: PARAGON® Induced Draft Towers
- Seamless Engineered Plastic (HDPE) Shell
- Corrosion Proof Construction
- Direct Drive Fan System
- Totally Enclosed VFD Rated Motors
- Factory Assembled for Simple Installation
- 20-Year Shell Warranty
- Low Pressure Drop Self Propelled PVC Water Distribution System
- High Efficiency PVC Fill
- Made in the USA
Delta packed the PARAGON® Induced Draft Tower with features to make it stand out from the competition. It includes the only seamless exterior shell on the market! We mold the entire casing of the cooling tower as one-piece so there are no joints or seams to require maintenance or develop leaks. The durable shell is made of engineered plastic (HDPE) and is entirely corrosion-proof. This innovative feature minimizes your maintenance costs over time. It also allows our water cooling towers to handle the toughest water cooling jobs in any climate while featuring industry-leading 20-year warranty.
The tower's simple design reduces maintenance costs even further. We send your cooling tower from the factory fully assembled. This allows ease of use and more reliable service from day one. You can order your PARAGON® Induced Draft Tower in a wide range of cooling tower tonnage from 55 to 250 cooling tower tons. Choose the size that is perfect for your application!
As the technology leader among cooling tower manufacturers in USA, our advanced design translates into highly efficient and environmentally friendly cooling towers. Our goal is to provide the most trouble-free water cooling HVAC system you can buy. Get even more peace of mind with Delta’s 20-year warranty.
Basic Specs
Highly Efficient & Environmentally Friendly Cooling Towers
The Delta PARAGON® Induced Draft Tower is an induced draft cooling tower making it perfect for a wide range of industrial and HVAC applications. Induced draft towers tend to be more cost-effective and sustainable than forced draft models because they circulate the air more efficiently. This means they need less energy to power the unit. They operate with a larger fan but need a smaller horsepower (hp) motor.
Detailed Features
Delta Cooling Towers Offer Cutting-Edge Engineering
All Delta Cooling Towers are factory assembled to the fullest extent possible for ease of installation and shipment. The following features are standard on our Paragon® Series Induced Draft Cooling Towers:
Shell: A seamless engineered polyethylene cylindrical (HDPE) molded shell, with conical transition for motor/fan assembly, louvered inlets and fitting orientation. Louvered inlets are designed for 360° air distribution. There are no joints, seams, panels, gaskets, bolts, fasteners or caulking like conventional towers.
Sump: Sump is integral with cooling tower shell, creating a one-piece seamless structure.
Water Distribution System: A self-propelled PVC distribution system incorporating a rotating sprinkler head and lateral distribution arms with integral drift eliminators. An inspection port is provided in the cooling tower shell at the lateral arm elevation for adjustment. (Non-rotating water distribution system is also available).
Wet Decking: A continuous wrapped spiral configuration of lightweight PVC, bonded and packed for maximum film cooling efficiency.
Fan Assembly: The fan assembly consists of a fan ring, propeller, motor and guard. The fan ring is coated with premium plasite coating ideal for the harshest corrosive environments. An adjustable pitch propeller fan, fiberglass reinforced polypropylene with a silica alloy hub, is directly driven by a totally enclosed VFD Premium rated motor designed for cooling tower duty. A fan guard is included that allows protection from the propeller and access to the motor.
Motor: Totally enclosed air over (TEAO) VFD rated motor with 1.15 service factor, designed for 208 or 230/460V 3 phase 60 cycle operation and suitable for outdoor service. Motor is provided with a 5-year motor manufacturer’s warranty.
Fitting Connections: PVC fittings are provided for inlet, outlet, overflow, drain
Hardware: All fasteners are 304 stainless steel. Anchor and lifting lugs are aluminum.
