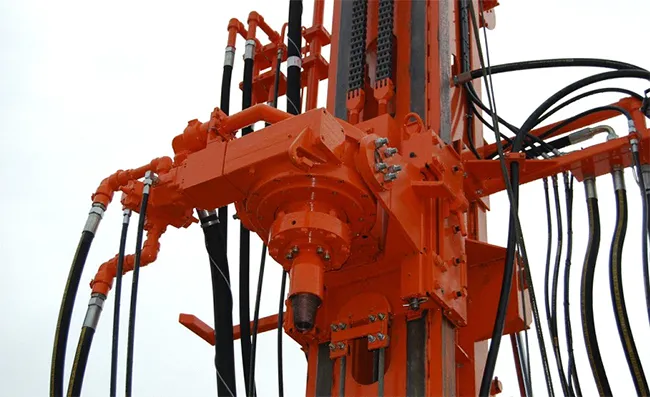

The Dando MK 500 incorporates a 150mm I.D. hollow spindle mounted on taper roller bearing and is fitted with a worm and wheel gear totally enclosed in an oil bath case. The head can then be powered by a single piston motor providing controlled rotation and torque in forward or reverse. General Specifications Estimated Shipping weight: 438kg Gear Oil: 8 litres EP Gear Oil Grade 80/90 Hydraulic Oil: Shell Tellus 46 or equivalent Maximum Pullback: 24 tons. Estimated shipping dimensions: 1m x 0.8m x .7m DOWNLOAD BROCHURE PISTON MOTOR ARRANGEMENTSINGLE GEAR MOTOR ARRANGEMENT All Information With reference to our 24 tonne Rigs, Dando Drilling use a valve with a 140lt slice (i.e.70lt motor) and pressure at 315 bar (4568 PSI). Based on this and with a hydraulic piston motor you will see the following speed and torque: 20:1 Ratio Maximum RPM 200 @ 3380 Nm (35cc/rev) Maximum Torque 7725 Nm @ 87 RPM (80cc/rev) 15:1 Ratio Maximum RPM 266 @ 2534 Nm (35cc/rev) Maximum Torque 5793 Nm @ 116 RPM (80cc/rev) 12 ½:1 Ratio Maximum RPM 319 @ 2112 Nm (35cc/rev) Maximum Torque 4828 Nm @ 139 RPM (80cc/rev) 10:1 Ratio Maximum RPM 400 @ 1690 Nm (35cc/rev) Maximum Torque 3862 Nm @ 175 RPM (80cc/rev) Please note – These are the results when fitted to a Dando type circuit and not the actual performance that the Rotary head and hydraulic motors are capable of. The piston motor can run with a pressure of 420 bar (6090PSI) and an RPM of 5000, therefore results will vary depending on your hydraulic capability.
