Cyclematic

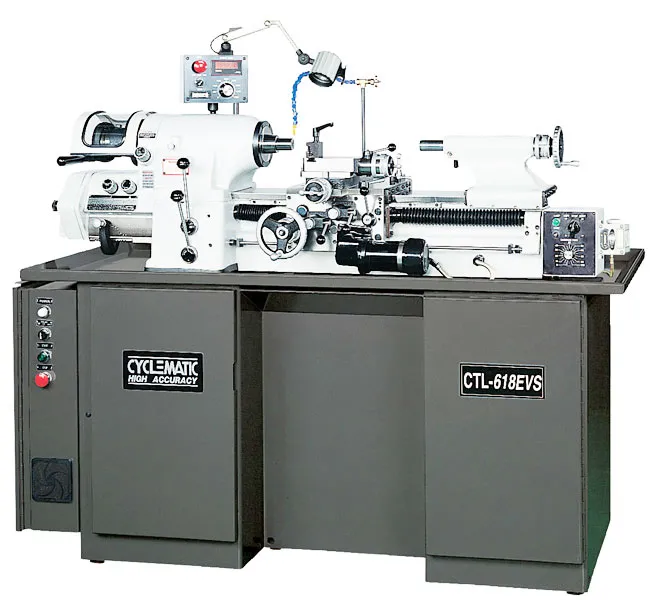

CTL-618EVS Toolroom Lathe

Features

• 280mm (11") Swing over bed.

• 457mm (18") Distance between centers.

• Dual range Inch/Metric quick change gearbox.

• Infinitely variable spindle speeds from 50-4000 RPM

• Full bearing carriage with Turcite-B slideway bearing material between carriage and bed.

• The spindle is mounted in high precision preloaded angular contact ball bearings eliminating radial and end play.

• Fast lever collet chucking with a single movement.

• Independent infinitely variable feeds produce accurate cuts with efficient chip removal, and smooth surface finish.

• Quick change gear box for easy precision threading.

• Automatic thread length control with fine adjustable stops provides for accurate threading without thread relief.

• Quick-action tool post slide for threading is instantly cleared from the work for a carriage return.

• The specially designed bed ways are made of hardened and ground alloy, tool steel that resist wear. The angular guide ways allow chips to fall in the chip tray.
