CUI Inc

SMI5-USB Series

SMI5-USB Series

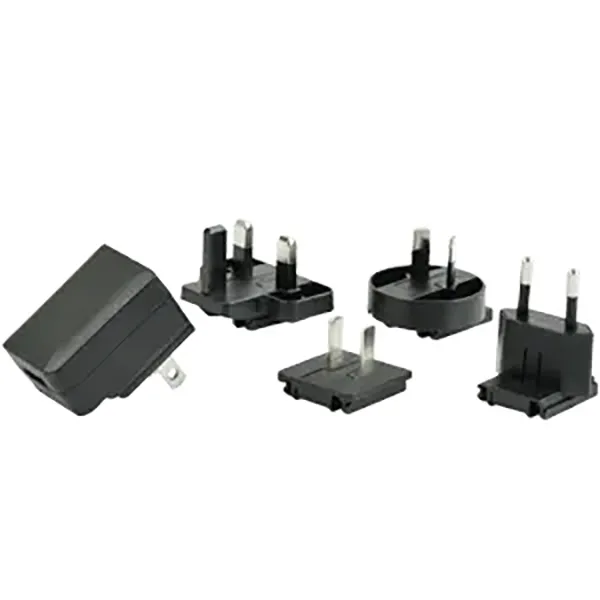

Multi-Blade Ac-Dc Wall Plug (USB A Inlet)

•    5 W
•    5 Vdc output
•    No-load power consumption < 0.075 W
•    Interchangeable Ac blades for global use
•    Limited Power Source (LPS) rated

Safety & Compliance

•    Safety Standards - 60950, 62368
•    Safety Approvals - CCC, CE, FCC, PSE, RCM, UKCA, UL/cUL

Description

The SMI5 series is a 5 W wall plug-in ac-dc power supply with interchangeable ac blades and an integrated USB input connector.  The series is designed to meet the current US DoE Level VI efficiency standards in addition to the proposed and more stringent EU CoC Tier 2 requirements. Designed for global use, CUI's SMI adapters include plug options for North America, Europe, the United Kingdom, Australia and China. This high efficiency power supply adapter is a continuation of CUI's initiative to provide customers with global solutions utilizing the latest in green power technology.

Specifications

• Input Voltage (Vac)
  90 ~ 264
• Package Type
  Wall Plug
• Grade
  Commercial
• Safety Standards
  60950, 62368
• Efficiency Standards
  Level VI, EU 2019/1782, CoC Tier 2
• Dimensions LxWxH (in)
  1.85 x 1.358 x 1.043
• Dimensions LxWxH (mm)
  47 x 34.5 x 26.5
• Protections
  Over Current, Over Voltage, Short Circuit
