CUI Inc

SDI12-UD Series

SDI12-UD Series

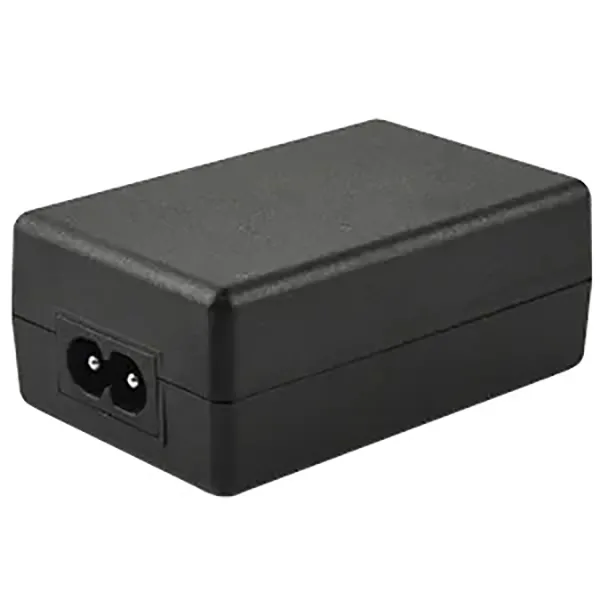

Two Prong (C8) Ac-Dc Desktop Adapter

•    10 ~ 12 W
•    5 ~ 24 Vdc output options
•    No-load power consumption < 0.075 W
•    Limited Power Source (LPS) rated

Safety & Compliance

•    Safety Standards - 62368
•    Safety Approvals - CE, FCC, UKCA, UL/cUL

Description

The SDI12-UD series is a 12 W desktop ac-dc power supply designed to meet the latest US DoE Level VI efficiency standards in addition to the proposed and more stringent EU CoC Tier 2 requirements. Featuring a range of safety approvals and no-load power consumption less than 0.075 W, the SDI12-UD desktop adapter is the ideal solution to keep you one step ahead of the latest power regulations.

Specifications

• Input Voltage (Vac)
  90 ~ 264
• Package Type
  Desktop
• Grade
  Commercial
• Safety Standards
  62368
• Efficiency Standards
  Level VI, EU 2019/1782, CoC Tier 2
• Dimensions LxWxH (in)
  2.953 x 1.87 x 1.075
• Dimensions LxWxH (mm)
  75 x 47.5 x 27.3
• Protections
  Over Current, Over Voltage, Short Circuit
