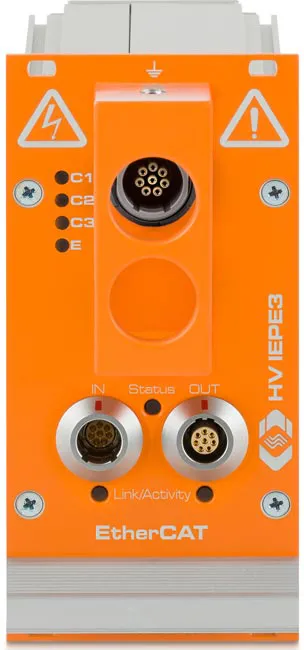

HV IEPE3 ECAT TBM Series
The HV IEPE3 FL1000 has been specifically designed for measuring analog voltages with IEPE sensors, e.g. triaxial accelerometers, in high-voltage environments.
As a 19-inch slide-in unit, this measurement module is ideal for use in test benches. Combined with the optional mounting frame, the HV IEPE3 FL1000 is a good choice for mobile use in vehicles, e.g. allowing it to be mounted in a car trunk.
The HV IEPE3 FL1000 is equipped with three analog inputs and provides a modified sensor excitation for the connection of IEPE sensors. If combined with special sensor cables, standard IEPE sensors, which are typically used in the field of low-voltage applications, can be safely operated even in high-voltage environments.
Key features
Safe measurement of acceleration, force and pressure with IEPE sensors in high-voltage environments
Compatible with all common IEPE sensors such as microphones, vibration, torque, etc.
3 analog inputs with reinforced insulation
High-voltage safe sensor excitation
Measurement data rate up to 1 MHz per channel
Precise synchronization (modules & channels)
Operating temperature range: -40 °C to +85 °C, IP65
