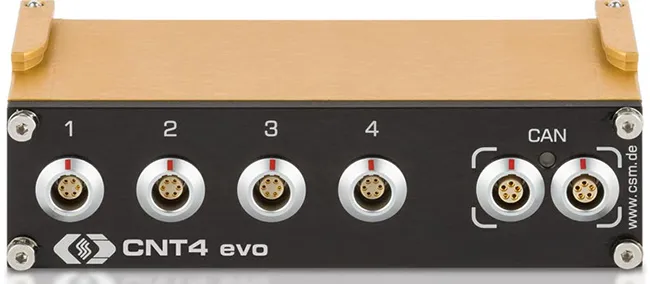

CNT4 evo

The measurement module CNT4 evo is a further development of the CNTMM series. Its functional range is identical to the former measurement module CNTMM 4 pro. In addition, the CNT4 evo is prepared for the use of TEDS-capable sensors. Moreover, CAN ID and measurement data rate can be set separately for each channel.

The CNT4 evo features four electrically isolated measurement inputs and therefore 8 logical channels for measuring:

Frequencies: 0.1 Hz to 300 kHz

Cycle / pulse duration: 1 µs to 100 s

Duty cycle / PWM: 0 % to 100 %

Event counting: 0 to 16 bit (65.535) or up to 32 bit

Speed: 0.01 rpm to 60000 rpm

Time offsets: 1 µs to 100 s

Up and down counting via pulse/direction or quadrature signal.
