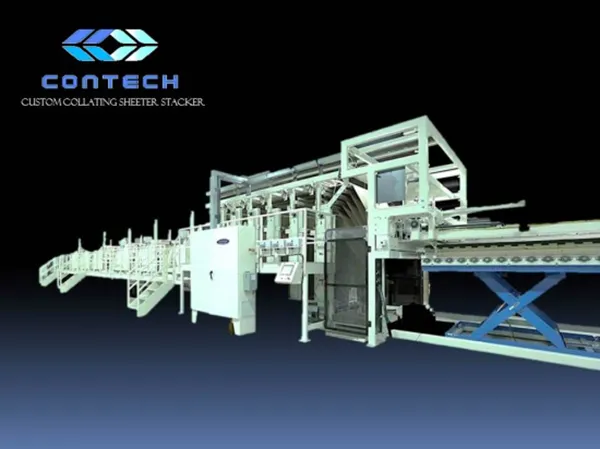

CONTECH COLLATING SHEETER STACKER
The Contech Collating Sheeter Stacker is a marvel of efficiency: it is specially designed to handle heavy-duty work loads.
This machine utilizes a series of heavy duty A frame unwinds with a dedicated accumulator for the web path located at the front of each unwind. The industrial Servo Sheeter has a steel box frame, down-acting custom cutting blades and blade holding assembly, sheet metal covers, and safety systems where required.
The Contech Collating Sheeter Stacker is customizable to your specifications.Featured in this model are:
Powered Unwinds
Heavy duty Powered A frame unwinds using steel tube framing, electronic sensor, sensing roll diameter for unwinds, a 6â€(150mm) air shaft and safety chuck on both ends of the drop in style shaft. A dedicated accumulator for each web path located in front of all unwinds. PID control to control between accumulators and VFD powered unwinds to pay off the web from each unwind. End of roll sensor, splice station, and operators platform with safety rails to access unwind controls and splice station. The PID on each of the accumulators will control the web tension and speed on each of the unwinds automatically. An automatic edge guide and E-stop will be mounted on each unwind. An additional 3 web guides between the accumulator and sheeter nip set for the back 3 unwinds, due to the distance from the sheeter nip set is also included.
Sheeter
Industrial Servo Sheeter has been figured using a boxed steel frame, down-acting custom cutting blades and blade holding assembly, sheet metal covers and interlocked safety system where required. Dual axis servo driven increment nip set system.
Heavy-duty air bias nip roller has been figured. Power for the cutting blade assembly is an electric motor, gearbox and air clutch assembly. Stationary horizontal blade with a multi axis cut action and horizontal moving blade set at an angle to give a clean cut.
For multi-layer webs the system is designed to maintain a separate web path for each web until it enters into the increment nip set.
Increment SystemIncrement system contains dual axis servo nip set system.
Controls
Telemechanique Controls Platform:Operator functions and diagnostic information will be displayed from main HMI.
Tolerance
Standard repeat-ability of cut to length tolerance of +/- .035†on single layer webs. Note the various thicknesses will change the setting that you must set in the PLC but you will have the repeat-ability. This is based upon stable materials. 6 layers of web could increase the tolerance.
Testing
Purchaser will furnish materials for testing and for approval in our plant.
Stacker
Dual gripper stacker consisting of the tube frame, gripper assembly complete with traveling clamp, timing belt drive with pulleys, sensors and guards for the system, auto decremented scissor lift, dual Servo drive motor and gear assembly to power the dual gripper and the controls necessary to operate the unit. We have included for safety purposes sheet metal spacers between the rollers for an operator to walk on the first row of rollers on the entrance side of the pallet handling system.
