TRV CAPACITORS
TRV CAPACITORS

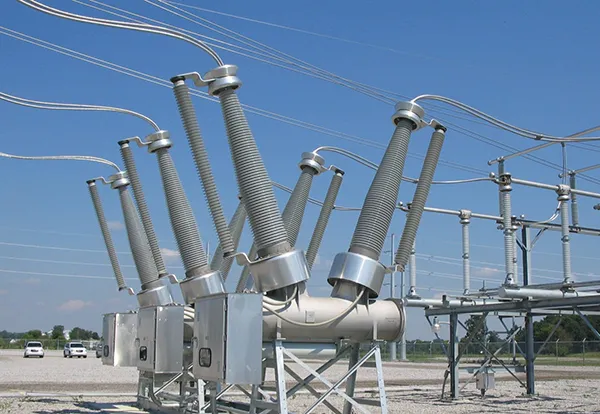

CONDIS IS THE WORLD LEADING MANUFACTURER OF HIGH-VOLTAGE CAPACITORS. TRANSIENT RECOVERY VOLTAGE CAPACITORS (TRV CAPACITORS) ARE INSTALLED PHASE TO GROUND CLOSE TO THE CIRCUIT BREAKER TERMINALS TO REDUCE TRANSIENT OVERVOLTAGES. OUR ENGINEERING TEAM IS PROFICIENT IN DESIGNING TAILOR-MADE PRODUCTS FOR AIS AND GIS SOLUTIONS.
- Swiss Made
- Long maintenance-free lifetime
- More than 250,000 capacitors
- High transient performance with compact and efficient design
PRODUCT FEATURES
Electrical specifications
Rated voltage of the equipment, kVup to 800*
Rated voltage, kVup to 462*
Rated capacitance, pFfrom 1,000 to 200,000*
Frequency, Hz50/60*
Partial dischargeless than 5*
Rated lightning impulse withstand voltage, kVup to 2,100*
Rated switching impulse withstand voltage, kVup to 1,550*
Short-duration power frequency withstand, Kvup to 975
