GRADING CAPACITORS
GRADING CAPACITORS

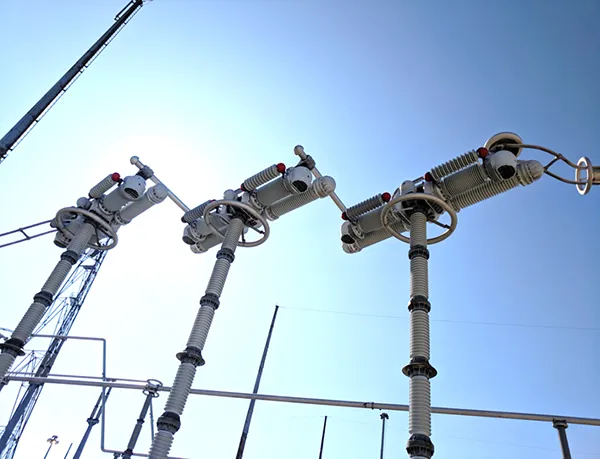

CONDIS IS THE WORLD LEADING MANUFACTURER OF GRADING CAPACITORS. THESE CAPACITORS ARE INSTALLED PARALLEL TO THE CIRCUIT BREAKER CHAMBERS TO CONTROL VOLTAGE DISTRIBUTION. OUR ENGINEERING TEAM IS PROFICIENT IN DESIGNING TAILOR-MADE PRODUCTS FOR GIS AND AIS SOLUTIONS.
- Swiss Made
- Long maintenance-free lifetime
- More than 250,000 capacitors delivered over the last 20 years
- High transient performance with compact and efficient design
PRODUCT FEATURES
Electrical specifications
Rated voltage of the circuit breaker, kVup to 1,100*
Rated voltage, kVup to 380*
Rated capacitance, pFfrom 150 to 2,500*
Frequency, Hz50/60*
Partial discharge, pCless than 1.5*
Rated lightning impulse withstand voltage, kVup to 2,200*
Rated switching impulse withstand voltage, kVup to 1,800*
Short-duration power frequency withstand voltage, kVup to 1,100
