Profibus Integration

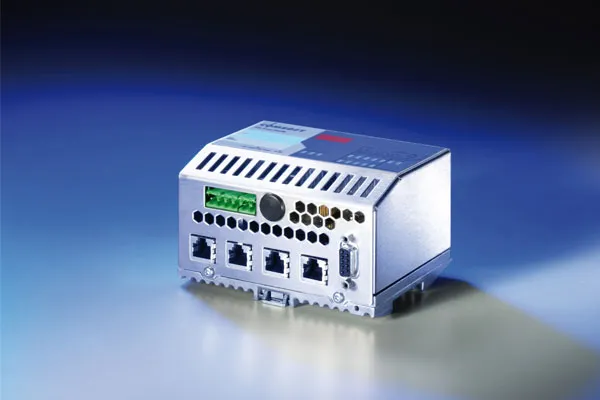

FNL Proxy PN/PB implements PROFIBUS DP segments into PROFINET IO networks. The Proxy integrates both existing and new PROFIBUS DP devices without any modification or adaptation into a PROFINET IO network. The PROFIBUS DP interface supports baud rates from 9.6 kbit/s to 12 Mbit/s.

The 24 Volt hat rail module contains one PROFIBUS DP interface, four PROFINET IO RT interfaces and one RS232 service interface for commissioning and diagnostics. COMSOFT configuration tool is included.

The Proxy supports PROFINET IO according to the current specification 2.0 and uses the modular mapping procedure. Diagnostics are reported by a PROFINET IO alarm. SNMP diagnostics are included.
