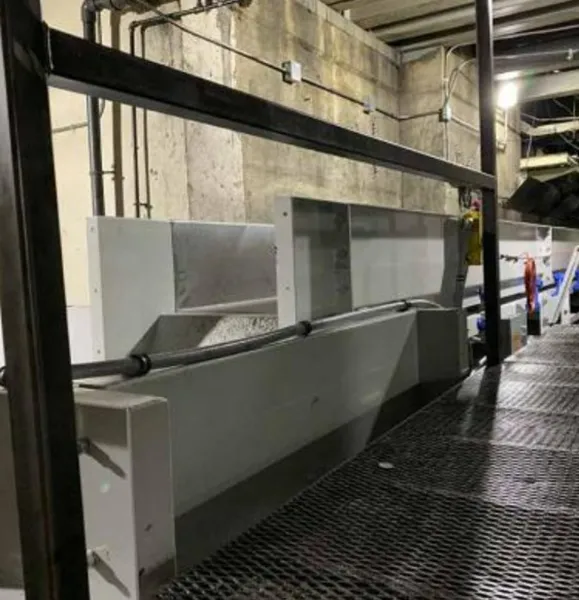

OSCILLATING CONVEYOR SYSTEMS

PROBLEM: Compass Systems custom engineers, builds and installs custom oscillating conveyors to move loose, granular or small materials short distances within your facility.

SOLUTION: Oscillating conveyor systems have a tray-type design which keep such material contained. A mechanical crankshaft causes these trays to oscillate back and forth, pushing the material forward as they move.

The oscillating motion is accomplished by specially designed inclined arms and an eccentric shaft driven by a motor through V-belts. The eccentric shaft is mounted on antifriction bearings and has V-pulleys at both ends with weights on them to counteract the unbalancing force. The rotation of the eccentric shaft provides a forward and backward motion to a connecting arm attached to the trough through a rubberized pin. The trough motion is predominantly horizontal with some vertical component, which causes it to oscillate with a pattern that moves material. A retaining spring assembly at the back of the trough absorbs shock load. All components including drive motor are mounted on a rigidly constructed base frame.

Compass systems will custom engineer your oscillating conveyor to tailor it to your unique process. Our oscillating conveyors are used to transfer hot, dry or wet abrasive metal chips, die scrap or finished parts. These conveyors can provide steady movement of material at about 12.5 feet per minute.
