PG6 - SCD-MCD Tool Production

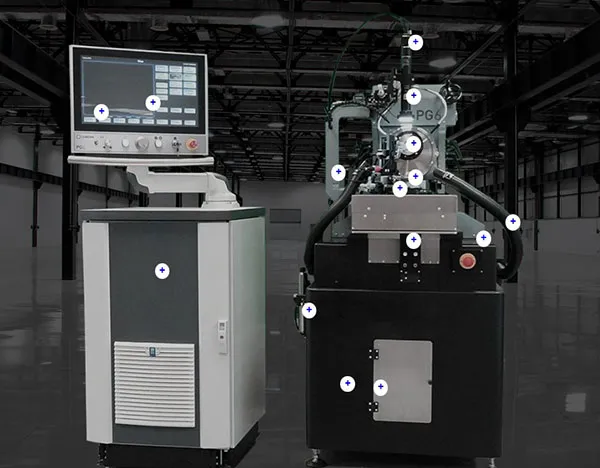

PG6 MULTI-FUNCTIONAL CAPABILITIESThe PG6 is an automatic, ultra-high precision grinding machine that is designed specifically for processing natural or synthetic single crystal diamond (SCD) tools. A world-first engineering solution for the precision manufacture of controlled waviness and complex geometry tools using high quality air bearings for both wheel spindle and the pivot. Programming is extremely simple and minimal training is required.The PG6 features a new closed loop nano-stop for more accurate finishing of the radius form and the high resolution PoE camera is used in conjunction with an improved optical lens system to enable tool measurements and geometry validation. The updated system provides a quick exchange for optional lenses. The enhanced vision system positioning stages are equipped with 1um resolution micrometre heads for ease of use and more accurate positioning.The output power of the lap spindle is increased by more than double, compared to its predecessor the PG4, to enable higher grinding loads and the PG6 is equipped with an LED light source with dual fibre optic goose-neck delivery allowing more precise positioning of the lighting. The optional extraction unit with dual suction points facilitates the removal of any diamond particles to create a cleaner working environment.Coborn offers a number of optional, enhanced software packages for the PG6, which include;Curve Block - To enable the processing of elliptical, hyperbolic, parabolic and cubic forms.Profile Block - To generate a concave form with multiple blended radii.
