CO2 Storage Safety Strobe Tower

CO2 Storage Safety Strobe Tower

This strobe tower provides a bright, flashing indicator and alarm sound for any of our CO2 or Oxygen Storage Safety Alarms. It clearly indicates the alarm level to anyone in the room

The tower strobe colored lights are used as follows:

• Green - Normal air
• Clear - Alarm level 1 / Relay 1 triggered.
• Amber - Alarm level 2 / Relay 2 triggered.
• Red - Alarm level 3 / Relay 3 triggered.

The strobe tower is controlled by the relay outputs on the RAD sensor unit (SEU).

Works with

Models

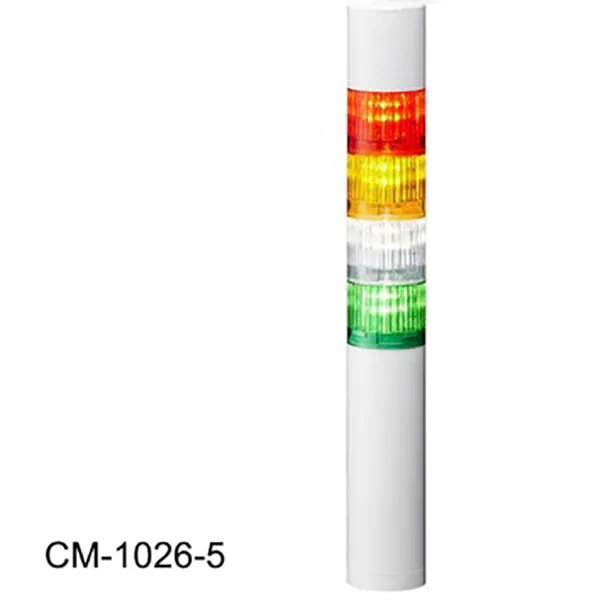

CM-1026-5 - Includes 16" CO2 Storage Safety Strobe Tower, wall-mounting bracket.

• Requires 110-240VAC wall power source and connections.
• May require additional wire to remote mount the strobe tower.
• Uses "Alarm/Relay" connections on the back of the RAD-0102-6 to activate strobes/horn.
• See attached wiring diagram: Connecting the CM-1026-5 Strobe Tower

CM-1026-6 - Includes 11.5" CO2 Storage Safety Strobe Tower, wall-mounting bracket.

• Requires 24VDC power source and connections.
• May require additional wire to remote mount the strobe tower
• Uses "Alarm/Relay" connections on the back of the RAD-0102-6 to activate strobes/horn.
• See attached wiring diagram: Connecting the CM-1026-6 Strobe Tower.
