CO2 Multi Sensor System
CO2 Multi Sensor System
The CO2 Multi-Sensor System is designed to detect Carbon Dioxide (CO2) levels in the ambient air to protect employees, workers, and establishments.
The CM-7000 features both audible and visual alarms as well as the ability to configure sensors independently including the 3 relays that are triggered at 5,000 TWA, 5000 ppm, 1.5% CO2, and 3% to meet OSHA/NIOSH standards including local fire codes.
Users may configure modules (sensor, horn/strobe, and key switch) from the main CM-7000 tablet either in direct connection or through daisy-chaining modules together.
The newest version CM-7000 2.1.10 software update enables users to easily address 12+ more sensors modules on any string.
High concentrations of carbon dioxide in confined spaces are dangerous and may lead to negative health problems ranging from fatigue, asphyxiation, or even fatality, if not properly monitored. With the CM-7000, you can ensure that you and your employees are safe and protected. Should an incident occur, you can rely on the CM-7000's ability to trigger an exhaust fan or send an immediate alarm to the fire department or monitoring company.
Features

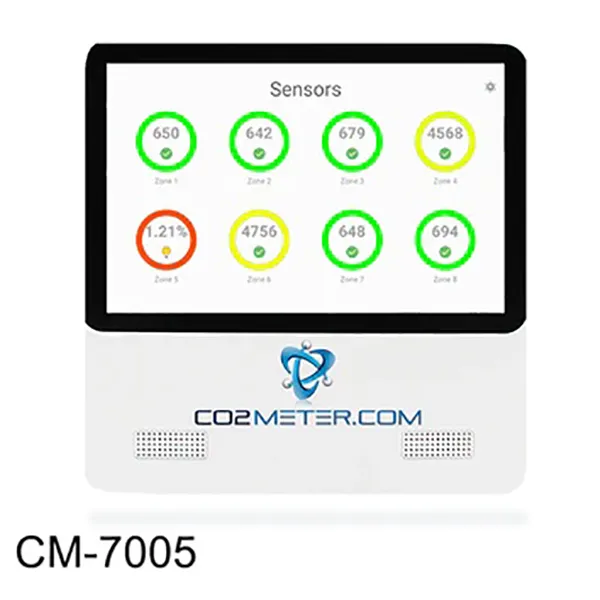

- 8" Touch Screen Display Panel
- 12+ easily addressable CO2 Sensors
- 100% Clean, Modern Appearance - All cables can be hidden
- Customer Configurable Alarm and Notification Settings
- Mute Push Button to temporarily mute audible alarms
- Integrated Speaker and USB port
- Meets NFPA, IFC, and NBIC Requirements
- Meets OSHA and NIOSH TWA Standards
- Meets all local municipality inspection codes and requirements
Applications
- Restaurant and Food
- Breweries and Wineries
- Beverage Dispensing
- Medical and Scientific
- Agriculture
- Safety
Models
- CM-7000 - CO2 Multi-Sensor System - Includes: (1 Main 8" TouchscreenControl Tablet, 2 Sensor Units, 2 Horn Strobes, Mounting Hardware, Cables, Power Supply and Safety Signage.)
- CM-7002 - Remote Relay Key Switch Add On
- CM-7003- Sensor Unit Add On
- CM-7004- Horn Strobe Add On
- CM-7006 - Mini Display Tablet
