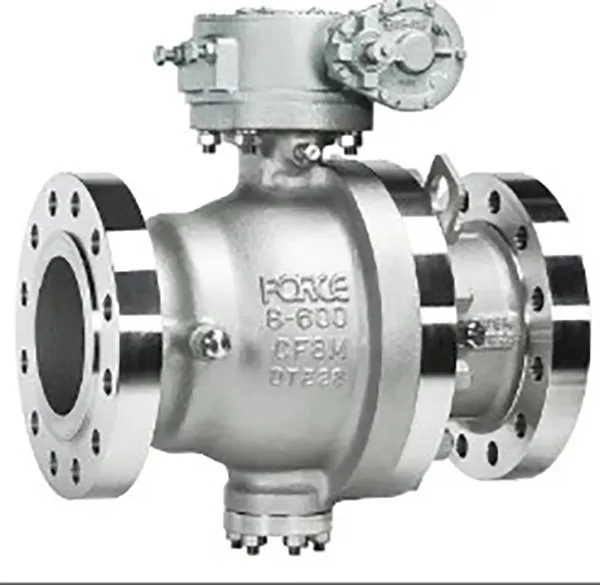

FORCE 2-Piece Trunnion Mounted Ball Valve

BTN Series

This 2-piece trunnion mounted ball valve includes a 316 stainless steel ball and is available with a carbon or stainless steel body. FORCE valves are highly customizable and can be made to order with metal seated designs, cryogenic valves, 3-way valves, exotic alloys and much more.

• Sizes: 2” – 48”
• Pressure Class: ANSI 150 through 2500
• Port: Full and Reduced
• Design Specifications & Compliance:
• Design/Materials: API 6D 24th Edition, ASME B16.34, API 608
• Inspection & Testing: API 6D / MSS SP134 and CSA Z245.15-17
• Fire Safe Tested: API 607 & 6FA
• Low Fugitive Emissions to API 641
• Conforms to NACE MR0175/ISO 15156-1
• End to End: ASME B16.10
• Flanged End: ASME B16.5
• API 6D Monogrammed
