CNC Flow Control

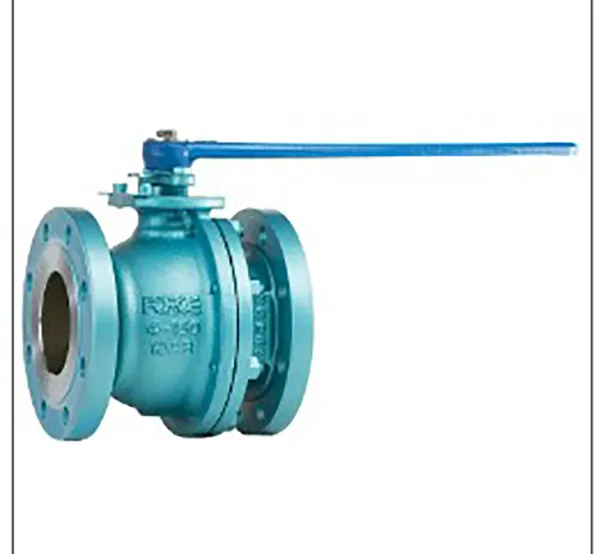

FORCE 2-Piece Floating Ball Valve

BF Series

This 2-piece floating ball valve is highly customizable and can be made to order with metal seated designs, cryogenic valves, 3-way valves, exotic alloys and much more.

• Sizes: 1/2” – 12”
• Pressure Class:  ANSI 150 through 1500
• Design Specifications & Compliance:
• Design/Materials: API 6D 24th Edition, ASME B16.34, API 608
• Inspection & Testing: API 6D / MSS SP134 and CSA Z245.15-17
• Fire Safe Tested: API 607 & 6FA
• Low Fugitive Emissions to API 641
• Conforms to NACE MR0175/ISO 15156-1
• End to End: ASME B16.10
• Flanged End: ASME B16.5
• API 6D Monogrammed
• PED 2014/68/EU Annex III, Module H
• Port: Reduced and Full
• Ball: 316 Stainless Steel
• Body: Carbon or Stainless Steel
