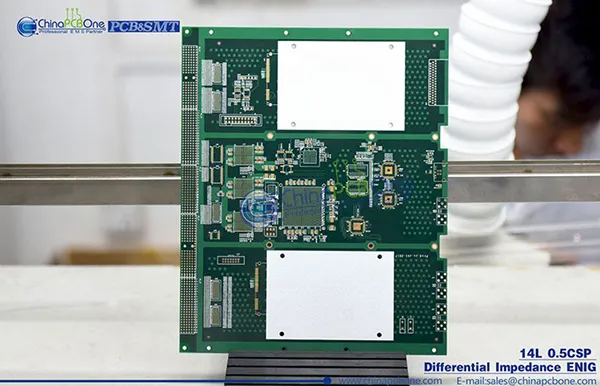

Multi-layer PCB
Multi-layer PCB
Our market is the Multilayer PCB(40L), HDI PCB(2 steps), Special process & Special material PCB, such as Aluminum base PCB, Rigid-Flex PCB, High-Frequency PCB, Heavy Copper PCB ( 19OZ ), and so on.
Multilayer PCB Manufacturing
The manufacture of high-layer, high-difficulty, special materials, special process circuit boards, which has always been our characteristics; the continuous improvement of high-multi-layer circuit board manufacturing process as our goal. Every year we invest a lot of human resources and material resources in production equipment and process research and development and try our best to catch up with the development of cutting-edge circuit board manufacturing technology.
Multilayer Printed Circuit Board
We can produce up to 40 layers of high-layer circuit boards, various buried and blind vias circuit boards, and HID PCB. HDI PCB can be up to 2 steps.
High-difficult PCB
①: Min hole we can drill is 0.15mm, and 0.075mm for HDI design, and high-density print circuit board.
②: We can control impedance both single-end and differential for multi-layer(the min trace width/space is 4mil/4mil)
③: High precision circuit board( min trace width we can do 3mil, and the thinnest core we can do is 0.05mm)
④: Other special material board
Special Material
Heavy copper board( copper weight:210-700um), copper base material, aluminum, PI material, BT material, high-frequency material, Rogers Series, PTFE material, Taconic Series, Arlon.
Special Technology
①: Flex-rigid board, high to six layer flex in the inner layer, gold finger in flex area.
②: Steps boards: can expose the pad and circuit for inner circuit
③: Mixture surface treatment: OSP+ENIG
④: Multi-layer metal board: double side copper baseboard, double side aluminum board.
⑤: Mixture laminating: can process two or more material mixture laminating, like Ceramic +FR4+PTFE
⑥: Multi-frequency board: every board use high-frequency material
⑦: Plugging resin
High-Quality Insurance
Processing high quality is the essential requirement for every staff
①: We strictly train and test the operation for staff
②: The quality department will check every status for all the board, to ensure the board can meet the quality requirement.
③: Providing all test equipment( like AOI, fly probe machine and all kinds of test machine), so that can ensure and improve the quality checking.
