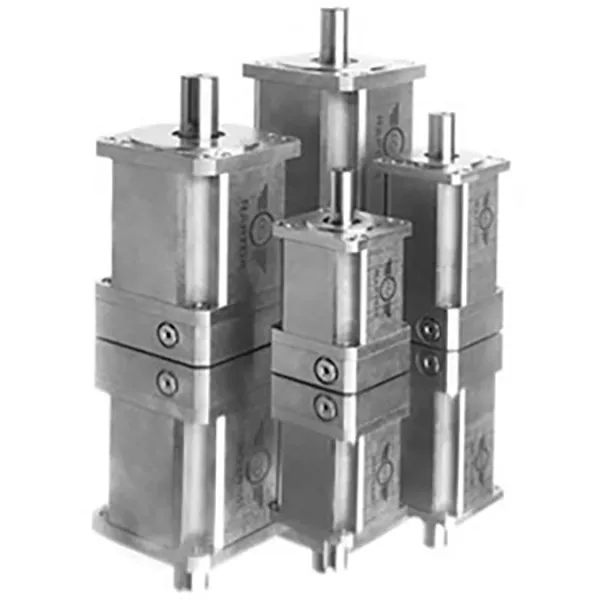

Raptor SS

Raptor SS

Design Features

• Stainless steel construction
• Wash-down ready
• Improved design for stiffness and loading
• High torque gear geometry
• Advanced materials and heat treatments
• IP65 sealed
• Mounting in any direction
• Captive input pinion
• Simplified quick installation
• NEMA and Metric configurations standard
• Available with white epoxy coating and/or food grade grease for food related applications

1. All torque ratings are based upon 3,000 RPM nominal input speed, and 15,000 hours minimum service life.

2. E-STOP torque rating is limited to 1,000 occurrences.

3. Torsional Stiffness rating varies by type and ratio. Specified rating based on Metric, 5:1 ratio.

4. Efficiency rated at 3,000 RPM input speed, at Nominal Rated Torque.

5. Other ratios available.
