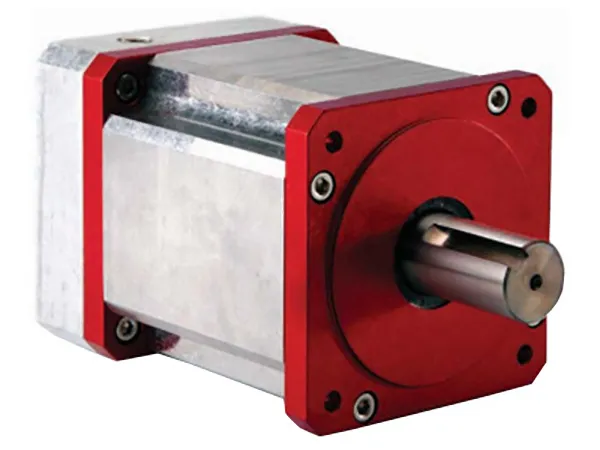

PRX Series-Predator

PRX Series-Predator

Design Features

• Single-piece construction utilized throughout
• IP65 sealed with Viton® seals at each joint
• High torque design with optimized gear geometry
• Advanced materials and heat treatments
• High torsional stiffness design
• Mounting in any direction
• Captive, bearing supported input pinion
• Simplified quick installation
• NEMA and Metric configurations standard

1. All torque ratings are based upon 3,000 RPM nominal input speed, and 15,000 hours minimum service life.

2. E-STOP torque rating is limited to 1,000 occurrences.

3. Torsional Stiffness rating varies by type and ratio. Specified rating based on Metric, 5:1 ratio.

4. Efficiency rated at 3,000 RPM input speed, at Nominal Rated Torque.

5. Other ratios available.

• Gearhead Length based on NEMA motor mounting.
• Gearhead inertia values shown include pinion, clamp and sleeve, and are for standard NEMA mounting.
• Key Width tolerance for English keys is: )+.0001 / -.000in.Key Width tolerance for Metric keys is: +.000 / -.0012in.
• All specifications are subject to change withour prior notice
