Carrier Vibrating Equipment

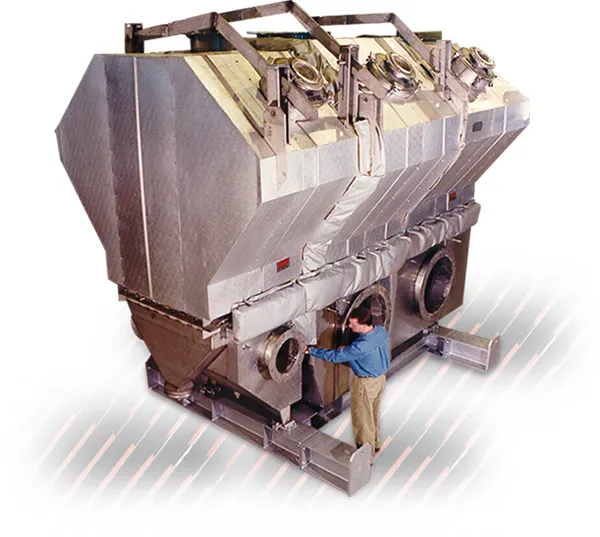

Conventional Fluid Bed Dryers

Conventional Fluid Bed Dryers

CARRIER CONVENTIONAL FLUID BED DRYERS ARE DESIGNED TO DRY AND/OR COOL A VARIETY OF PRODUCTS WITHOUT THE AID OF VIBRATION.

Our static fluid bed dryer systems pass a gas directly through a bed of solid material via a perforated plate, nozzles, or other fluidizing media which lifts and mixes the solids. At a certain gas velocity (the fluidization velocity), the bed will behave much like a boiling liquid.

CONVENTIONAL FLUID BED DRYERS ARE WELL SUITED FOR:

• Static fluid beds dryers can be multi-functional, providing drying, cooling, classifying, sterilizing and more in a single unit.
• Continuous operation or batch.
• Efficient processing without product degradation — Carrier fluid bed dryers provide gentle fluidizing action.

FEATURES AND BENEFITS OF CARRIER CONVENTIONAL FLUID BED DRYERS:

• Product is continually mixed to promote uniformity.
• Our fluid bed dryers are easily adaptable to batch or continuous processing.
• Indirect heat transfer tubes or plates can be immersed in the bed, significantly reducing the size and cost of the fluid bed dryer and increasing energy efficiency.
• Efficient static fluid bed dryer design transfers heat with low energy consumption.
• Vibration can be used to aid in processing more difficult products.
• Sampling ports.
• Variation in process by controlling bed depth, retention time, and product temperature.
• Sanitary, U.S.D.A (3A) approved construction.
• Proven performance, our conventional fluid bed dryers offer easy cleaning, rugged construction, are dust tight, and are low maintenanc
