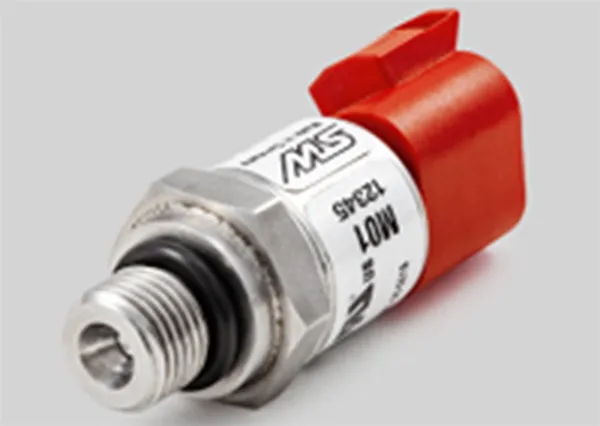

M01 Pressure Sensors

Compact and robust design for use in harsh environments. Designed for mobile hydraulics, alternative drives (H2, CNG, LPG) and industrial sectors.

Pressure ranges from 0…0.25 bar to 0…10 bar (relative and absolute) with silicon measurement cell

• Pressure ranges from 0…10 bar to 0…2000 bar (relative) with welded stainless steel measurement cell
• Overload pressure at least twice the nominal pressure
• Media temperatures up to 150 °C / 302 °F
• Protection class IP67 and IPX9K
• CAN enabled: CANopen, J1939, STW proprietary
• SENT variant: SAE J2716 APR2016 (Rev. 4) supported
• All common analog output signals available: 4…20mA, ratiometric and Voltage output.
