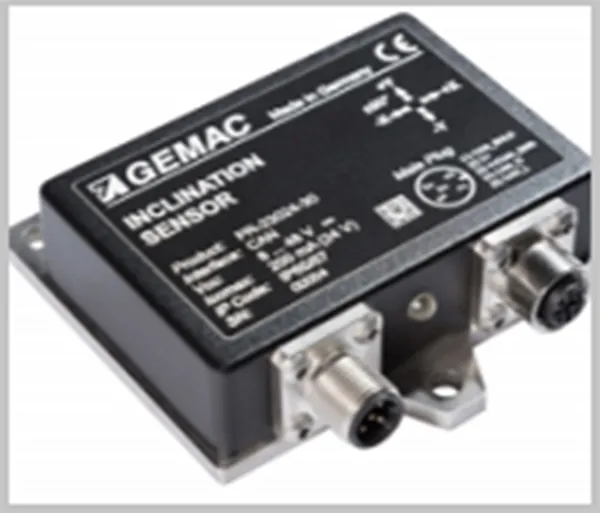

Gemac Reference Inclinometer

The compact and robust design makes the sensor a suitable angle measurement device in rough surroundings for different applications in industry and automotive technology. A simple setting of all parameters which are stored in the internal permanent memory is possible via CAN or CANopen interface.

• Inclination sensor with measurement range: 360°(1-dimensional)/±90° (2-Dimensional)
• High sampling rate and bandwidth
• High resolution (0.01°) and accuracy (0.05°)
• Compensated temperature coefficient (10x improved temperature coefficient to)
• Compensated cross sensitivity
• Programmable vibration suppression (digital filter)
• Comfortable CAN interface Free adjustable IDs Comfortable CANopen interface Meets the CiA DS-301, device profile CiA DSP-410 Setting Node ID and baud rate via LSS Service
• Current interface: freely adjustable output in the range 0 … 20.48 mA (factory default: 4 … 20 mA)Voltage interface: freely adjustable output in the range -10.48 … 10.48 V (factory default: 0 … 10 V) freely adjustable angle in the range 0 … 360° / ±90°
• Functions: Angle request, cyclical output, synchronized output, output on angle change Configurable cut-off frequency (digital filter)
• Metal housing with stainless steel base plate Temperature range: -40 °C to +80 °C Degree of protection: IP65/67
