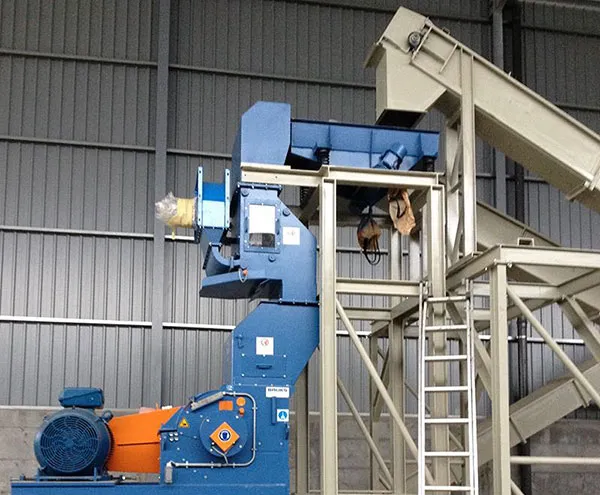

Drum chipper
Drum chipper
OPTIMIZED SOLUTION FOR CHIPPING SHORT WOOD WASTE
Bruks drum chippers with vertical drop-feeds are the optimum solution for chipping short logs. They are also used as re-chippers, Bruks Klöckner re-chipper, to reduce oversized chips after a screening process.
The wood chips from our machines can be used for high-quality applications in pulp mills as well as by the veneer industry, particle board producers and as microchips for direct drying in pellet mills. Our drum chippers can process the most difficult-to-handle, contaminated cheap wood and produce a quality end product that can be used for energy-generation.
HIGHEST NUMBER OF CHIPS PER HOUR FOR THE LOWEST PRODUCTION COSTS
Our drum chippers deliver quality wood chips for a long service life, offering owners maximum chips per machine hour for the lowest production costs possible.
Drop-fed drum chippers are available for small residue processing units up to large-scale units producing wood chips at a rate of between 10 to 1,000m3 of chips per hour, with drive units from 22 to 500kW.
As standard, chip length is adjustable between 20 and 35mm and other chip lengths are accommodated with special designs. Their size is determined by the number of chipping knives, the screen geometry as well as the chipping speed. Controlling these elements ensures the production of uniform chips.
The chips are discharged from the base of the machine at an upward angle, depending on chipper type. To eliminate oversized chips, the discharge opening is fitted with a screen.
